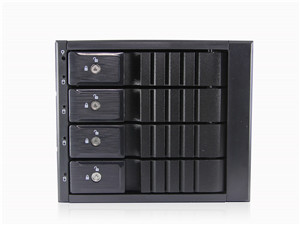

BPN-SEA340HD
Trayless 3x 5.25" to 4x 3.5" 12Gb/s HDD Hot-swap Rack
  • Aluminum Frame, designed for heavy-duty purpose
  • Supports SAS I/II/III and SATA I/II/III Hard Drives
  • Integrative shaping aluminum design for quickest heat sink
  • High Performance Transfer Rate up to 12Gb/s
  • Aluminum front bezel with metal key lock mechanism for double safety
  • Removable fan cover for easy maintenance
  • Multi-functional LED Indication
  • Support Hot-Swap & RAID Configuration (need an additional RAID controller)
Product Introduction
BPN-SEA340HD 12Gb/s tray-less hot-swap hard drive cage. It features the latest transfer rate technology of 12Gb/s and is RAID capable. It also comes with adjustable fans speed and ultra-quiet cooling fans. The LED Display lights features the new blue light by popular demand. Heat dissipation is enhanced by the full aluminum construction and a 80mm fan. SATA power connector increases compatibility with most power supplies. The metal key locks help secure your hard drives and prevent unauthorized access. Converting three standard 5.25" drive bays into four usable hard drive slots, it is economically designed to maximize your investment.

Model NumberBPN-SEA340HD
RoHS ComplianceYes
Standard Drive Bays Hotswap 3.5": 4
5.25" Drives: 3
Hotswap HDD Type:3.5" SAS I/II/III & SATA I/II/III
IndicatorsBlue for Power on/ Purple for HDD Access
SecurityKey Lock
Material of Front BezelAluminum
Material of HandleAluminum
Material of Main ChassisAluminum
Color of Front BezelBlack/ Blue/ Red/ Silver
Color of Main ChassisBlack
Cooling Fan1x80mm
Ordering Information
(Part Number)
Black Handle:BPN-SEA340HD-BLACK
Blue Handle:BPN-SEA340HD-BLUE
Red Handle:BPN-SEA340HD
Silver Handle:BPN-SEA340HD-SILVER
Dimensions (WxHxD)5.71" x 4.92" x 7.79"
145.0 mm x 125.0 mm x 197.9 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
RP-HDD2535-SIInternal 2.5" to 3.5" HDD/SSD Converter
