WM432B
4U 328mm Depth Wallmount Server Cabinet
4U 328mm Depth Wallmount Server Cabinet
- Sturdy and Rugged Welded Frame Structure Comes Pre-Assembled
- Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
- Three Ways, Top, Bottom, and Rear Cabling Tunnels
- Wallmount or Desktop Standalone
- Enforced Strengthen Glass Front Door with Security Key Lock
- Removable Side Panels with Easy Handy Latches
- 2.0mm SPCC High-Quality Cold Roll Steel Post; 1.2mm for Enclosure
- Easily to Switch Door Side, Door Opens 230 Degree
- Comes with M6 Mounting Screws and Cage Nuts
Product Introduction

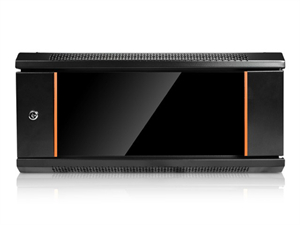

Elegant and secured WM432B wall mount cabinet by CLAYTEK. The easy side panel access is convenient to perform routine maintenance, but also can be locked to prevent unauthorized access. Three ways, top, bottom, and rear cabling tunnels enable data and cable routing. WM series incorporate optimal cooling design. The partially vented frames and two optional AC fans that can be put on the top panel give the wall-mount cabinet excellent air ventilation. Heat-treated glass door provides extra strength and able to silkscreen logos, marks, and labels to boost product image.
Elegant and secured WM432B wall mount cabinet by CLAYTEK. The easy side panel access is convenient to perform routine maintenance, but also can be locked to prevent unauthorized access. Three ways, top, bottom, and rear cabling tunnels enable data and cable routing. WM series incorporate optimal cooling design. The partially vented frames and two optional AC fans that can be put on the top panel give the wall-mount cabinet excellent air ventilation. Heat-treated glass door provides extra strength and able to silkscreen logos, marks, and labels to boost product image.
| Model Number | WM432B |
| RoHS Compliance | Yes |
| Form Factor | 4U |
| Industry Standard | ANSI/EIARS-310-D, IEC297-2, DIN41491, DIN41494, PART7GB/T3047.2-92 |
| Material | Posts:2.0mm SPCC High-Quality Cold Roll Steel Enclosure:SPCC 1.2mm |
| Loading Capacity | 130 lbs |
| Supported Chassis Depth | 10.5" and under |
| Internal Dimensions | Depth: 10.5" max |
| Cooling | Optional 2x120mm 120V AC fan can be installed on the top (p/n: WA-FANAC120) |
| Dimensions (WxHxD) | 23.62" x 11.00" x 12.91" 600 mm x 279 mm x 328 mm |
| Notes | - HTS code: 8473.30.5100 (ECCN is not applicable). |
FAQ
There are no FAQ entries for this model. |
Accessories
| Model # | Description | |
 | WA-DT0414 | EOL - 1U Digital Temperature Unit |
 | WA-FANAC120 | Wallmount Cabinet 120mm AC Cooling Fans |
 | WA-LKEY | WM WMZ WNG Cabinet Side Panel Key Lock |
 | WA-PD010 | 10 Outlet Overload Circuit Breaker Protection Power Distribution Unit |
 | WA-PS06A | Build-to-Order - 6 Outlet Power Strip |
 | WA-SFH40B | 2U Supporting Tray |
 | WM-CASTER-TN | Casters for WM Wallmount Cabinet Series |
 | WM-FEET-TN | Floor Leveling Feet for WM Wallmount Cabinet Series |
