Product Detail

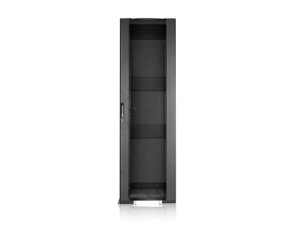

Build-to-Order - 42U 1200mm Depth GR 63 Zone 4 Seismic Server Cabinet

Universal Fit Most of Rackmount Chassis and Equipment
42U 1200mm Fully Welded Tubular Steel Structure
Front and Rear Security Lock to Prevent Unauthorized Access to Equipment and Data
Easy Cabling Management. Cable Entry Provided from Top/ Bottom and Front/ Back
Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis
Perforated Doors for Optimal Airflow
High Loading Capacity- 1500KG
Designed to Meet NEBS-Telcordia-GR-63-CORE Zone 4 Standard
Split Rear Doors to Reduce Clearance Requirements for Service Access
Fixed Side Panel to Avoid Damage from Earthquake
Reinforcing Triangle Metal in Each Corner

Product Introduction

WNE-4212 Series Cabinet is built with high-quality SPCC cold rolled steel structures to sustain GR 63 Zone 4 test w/o damaging rack-mounted equipment. With perforated doors, WNE-4212 provides excellent air circulation for servers and other devices. Cabinet is completely lockable from the front and rear doors to prevent unauthorized access. This stylish and secure rack-mount cabinet protects your investment in computer equipment against environmental elements heat and dust. WNE Series offer a superior environment for mission-critical equipment.

Specifications	Download	FAQ
Optional Accessories

Model Number	WNE-4212
RoHS Compliance	Yes
Form factor	42 U
Industry Standard	EIA-310
Material	Door Frame:SPCC t:3.0mm::Side Panel:SPCC t:1.5mm::Vertical Rails:SPCC t:2.0mm::Vertical Cable Management:SPCC t:1.5mm::Front/Rear Door:SPCC t:1.2mm
Color	Black (RAL9005)
Loading Capacity	static loading:3300lbs/ seismic test loading:1320lbs
Supported Chassis Depth	36.5" and under
Dimensions (WxHxD)	23.62" x 78.58" x 47.24" 599.9 mm x 1,995.9 mm x 1,199.9 mm

Download

Product Drawing

FAQ

Q :	Any seismic test report available?
A :	Please refer to the PDF.

Accessories

	Model #	Description
	WA-CM1UB	1U Cable Management Rack Kit
	WA-CM2UB	2U Cable Management Rack Kit
	WA-DT0414	EOL - 1U Digital Temperature Unit
	WA-KBR96B	Build-to-Order - 1U Compact Sliding Keyboard Drawer
	WA-P1UB	1U Cabinet Front Cover Plate
	WA-P2UB	2U Cabinet Front Cover Plate
	WA-P3UB	3U Cabinet Front Cover Plate
	WA-PD010	10 Outlet Overload Circuit Breaker Protection Power Distribution Unit
	WA-PD016	16 Outlet Lightning Surge Protection Power Distribution Unit
	WA-PS010	Build-to-Order - 10 Outlet Power Strip
	WA-PS012	Build-to-Order - 12 Outlet Power Strip
	WA-PS022	Build-to-Order - 22 Outlet Power Strip
	WA-PS036	Build-to-Order - 36 Outlet Power Strip
	WA-PS06A	Build-to-Order - 6 Outlet Power Strip
	WA-SFR96B	Heavy Duty Sliding Tray
