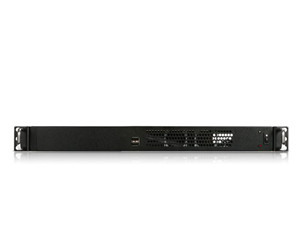

D-1101-ITX
1U 5.25" bay Compact Rackmount mini-ITX Chassis
  • Industrial chassis less than 11" deep
  • 2x front access USB 2.0 ports
  • Supports mini-ITX motherboards
  • Supports 1U flex power supplies
  • Optional parts to turn 5.25" bay to 3.5" bay
  • Optional HDD bracket to accommodate up to 6x 2.5" HDDs/SSDs





Product Introduction
D-1101-ITX is a reliable and stable 1U-high 11" depth industrial computer chassis. This chassis supports 5.25" device, one 3.5" hdd, or three 2.5" hard drives with a mini-ITX motherboard. D-1101-ITX supports a 1U flex power supply to meet regular system applications and optional 40mm cooling fans can be installed at front for air ventilation.

Model NumberD-1101-ITX
RoHS Compliance VersionYes
Form factor1 U
Standard Drive Bays 2.5" Drive (internal): 3 or
3.5" Drive (internal): 1
5.25" Drives: 1
IndicatorsPower, HDD
SwitchesPower
Supported PSU Type1U Flex
Expansion Slots1
Material of Front BezelSECC 1.0mm
Material of Main ChassisSteel
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector2x USB 2.0
Motherboard Size6.7 x 6.7 (mini-ITX)
Optional Fan:40mm x2
Dimensions (WxHxD)19.00" x 1.75" x 10.95"
482.6 mm x 44.4 mm x 278.1 mm
Notes- if 5.25" device is in place and its depth is less than 142mm, one internal 2.5" HDD can be installed. if 5.25" device is longer than 142mm, no internal 2.5" or 3.5" HDD can be installed.

- either one internal 3.5" or three 2.5" HDDs can be installed if no 5.25" device in place.

- standard I/O shield will NOT fit any 1U chassis.
- for PCI riser, use DD-611-C5 (search for DD-611-CX).
- for PCIe x16 riser, use DD-666-C5 (search for DD-666-CX).


FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
DD-FAN40-Q40mm Liquid State Bearing Fan

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Single
TC-1U15FX11U 150W Flex Power SupplyBrackets Not Required
TC-1U18FX11U 180W Flex Power SupplyBrackets Not Required
TC-1U22FX81U 220W Flex High Efficiency Power SupplyBrackets Not Required
TC-1U30FX81U 300W Flex High Efficiency Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
