Product Detail

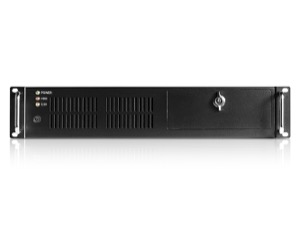

Build-to-Order 2U Compact Rackmount Chassis

Front Access USB2.0 x2
80mm x1 cooling fan
Key Lock Front Bezel to Prevent Unauthorized Access
Power and HDD LED
Power and Alarm Reset Switch
Support Standard ATX PSU
Supports Six Full Height Add-on Cards

Product Introduction

The D-202A-6 2U Compact Rackmount Chassis is a secure chassis solution for your server needs. This compact 2U chassis supports six full height add on cards as well as standard ATX PSU. The secure locking 5.25" bay prevents unauthorized access to all of your precious information.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	D-202A-6
RoHS Compliance	Yes
Form factor	2 U
Standard Drive Bays	3.5" Drives: 1 3.5" Drive (internal): 1 5.25" Drives: 1
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	PS2
Expansion Slots	6
Security	Key Lock
Material of Front Bezel	SGCC 1.2mm
Material of Handle	SGCC
Material of Main Chassis	1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel	Black or Beige
Color of Main Chassis	Black
Front Connector	2x USB 2.0
Air Filter	Removable & Washable
Motherboard Size	Passive Butterfly 6 slot backplane
Cooling Fan	1x80mm
Dimensions (WxHxD)	18.90" x 3.47" x 17.72" 480.1 mm x 88.1 mm x 450.1 mm

Download

Data Sheet

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-HUB-SAUF	3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
	RP-READER35	Build-to-Order - All-in-one USB 2.0 Card Reader
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-20-D2	20" Sliding Rail Kit for D Storm 2U Chassis
	TC-RAIL-24-D2	24" Sliding Rail Kit for D Storm 2U Chassis
	TC-RAIL-26-D2	26" Sliding Rail Kit for D Storm 2U Chassis
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Single
	TC-350PD3	Special Order - 350W PS3 Size ATX12V Switching Power Supply
	TC-500PD8B	500W PS2 ATX High Efficiency Switching Power Supply
	TC-700PD8B	700W PS2 ATX High Efficiency Switching Power Supply

Compatible Motherboards

Model #	Motherboard Size	Company Name
There are no compatibility motherboard for this model.
