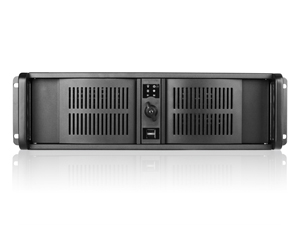

D-300-TS669
3U Compact Stylish Rackmount Chassis with 7" Touch Screen LCD
  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • 60mm x1 Cooling Fan
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Optional Wall-mount Brackets
  • Optional Aluminum Chassis
  • Optional BPU-230 2 to 3 Hot-Swappable HDD Cage
  • Built-in 7" Touch Screen LCD
  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Built-in 7" Touch Screen LCD





Product Introduction
Introducing the new D-300-TS669 from our well-praised D-Storm rackmount chassis. Built-in 7" touch screen LCD enables instant system control and configuration. The 3U industrial rackmount chassis D Storm D-300-TS669 supports 7 full-length add-on cars. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance.

Model NumberD-300-TS669
RoHS Compliance VersionYes
Form factor3 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 1
5.25" Drives: 2
IndicatorsPower, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
SwitchesPower, Reset
Supported PSU Type1U, 2U
Expansion Slots7
SecurityFront Bezel Key Lock
Material of Front BezelAluminum alloy
Material of HandleSECC Zinc-Coated Steel
Material of Main Chassis1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector2x USB 2.0
Air FilterRemovable & Washable
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan1x60mm
Optional Fan:60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required)
Ordering Information
(Part Number)
Black Bezel:D-300-BK-TS669
Blue Bezel:D-300-BL-TS669
Red Bezel:D-300-RD-TS669
Silver Bezel:D-300-SL-TS669
Dimensions (WxHxD)19.00" x 5.25" x 20.80"
482.6 mm x 133.3 mm x 528.3 mm


FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
BPU-124V2-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SABuild-to-Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-230SATA2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-2535-SI3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
BTC-300-WALLBuild-to-Order - D-300 Wallmount Brackets
DD-FAN60-Q60mm Liquid State Bearing Fan
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-4HDD25F
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD2.52.5" to 3.5" Hard Drive Mounting Bracket
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD25P3.5" Drive Bay Bracket for 2x 2.5" SSDs
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
RP-HUB-SAUF3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
RP-READER35Build-to-Order - All-in-one USB 2.0 Card Reader
T-25HD-SIBuild-to-Order - 2.5" SATA HDD SSD Slot Carrier
T5F-SSTrayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T5-SABuild-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-7-SARugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
TC-ISF088 Ports Fan Sensor Board
TC-ISTORM72x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
TC-ISTORM83.5" to 5.25" Hard Drive Cooling Heat Sink
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
BPN-DE230SSTrayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
RP-4HDD255F4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
DD-300-DBLUED-300 BLUE DOOR
DD-300-DREDD-300 RED DOOR
DD-300-DSILVERD-300 SILVER DOOR
DD-300-SE-BLACK3U Black Bezel for SE series
DD-300-SE-BLUE3U Blue Bezel for SE series
DD-300-SE-RED3U Red Bezel for SE series
DD-300-SE-SILVER3U Silver Bezel for SE series
BPU-124V2-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SABuild-to-Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-230SATA2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-2535-SI3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
BTC-300-WALLBuild-to-Order - D-300 Wallmount Brackets
DD-FAN60-Q60mm Liquid State Bearing Fan
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD2.52.5" to 3.5" Hard Drive Mounting Bracket
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD25P3.5" Drive Bay Bracket for 2x 2.5" SSDs
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
RP-HUB-SAUF3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
RP-READER35Build-to-Order - All-in-one USB 2.0 Card Reader
T-25HD-SIBuild-to-Order - 2.5" SATA HDD SSD Slot Carrier
T5F-SSTrayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T5-SABuild-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-7-SARugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
TC-ISF088 Ports Fan Sensor Board
TC-ISTORM72x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
TC-ISTORM83.5" to 5.25" Hard Drive Cooling Heat Sink
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
BPN-DE230SSTrayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
RP-4HDD255F4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
DD-300-DBLUED-300 BLUE DOOR
DD-300-DREDD-300 RED DOOR
DD-300-DSILVERD-300 SILVER DOOR
DD-300-SE-BLACK3U Black Bezel for SE series
DD-300-SE-BLUE3U Blue Bezel for SE series
DD-300-SE-RED3U Red Bezel for SE series
DD-300-SE-SILVER3U Silver Bezel for SE series
BPN-DE110SSTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
BPN-DE110SSTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
BPN-2535DE-SA3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPN-2535DE-SA3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-G35-SSIndustrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G35-SSIndustrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPN-DE110SS-WBTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-DE110SS-WBTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-DE230SS-WB Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-DE230SS-WBTrayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-124K-SATrayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPN-124K-SATrayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K35T-SABuild-to-Order - Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K35T-SABuild-to-Order - Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-35K25-SABuild-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-35K25-SABuild-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Redundant
IS-400R2UP400W 2U Redundant Power SupplyBRT-0203-R2 (1)
DD-STANDOFF-12MM (2)
IS-460R2UP460W 2U Redundant Power SupplyBRT-0203-R2 (1)
DD-STANDOFF-12MM (2)
IS-500R2UPD8Build-to-Order - 500W 2U 80 Plus Redundant Power SupplyBRT-0203-R2 (1)
BRT-D23US2U8-LT (1)
BRT-E3UR2U8-B (1)
BRT-E23UR2U8-RR (1)
DD-STANDOFF-12MM (2)
IS-500S2UP500W 2U Redundant Power SupplyBRT-0203-S2 (1)
DD-STANDOFF-12MM (2)
IS-600S2UP600W 2U Redundant Power SupplyBRT-0203-S2 (1)
DD-STANDOFF-12MM (2)
IX-600S2UPD8600W 2U High Efficiency Redundant Power SupplyBRT-0203-S2 (1)
DD-STANDOFF-12MM (2)
IS-700S2UPBuild-to-Order - 700W 2U Redundant Power SupplyBRT-0203-S2 (1)
DD-STANDOFF-12MM (2)
IX-750S2UPD8G750W 2U High Efficiency Redundant Power SupplyBRT-0203-S2 (1)
DD-STANDOFF-12MM (2)
IX-800S2UPD8800W 2U High Efficiency Redundant Power SupplyBRT-0203-S2 (1)
DD-STANDOFF-12MM (2)
IS-950R3KPD8950W 3U 80 Plus Redundant Power SupplyBRT-D34UR3KN8-LR (2)
BRT-D3UR3K8-RR (1)
DD-STANDOFF-12MM (2)
Single
IS-2U35PD82U 350W 80 Plus High Efficiency Power SupplyBRT-0003-RR-S6 (1)
IS-2U40PD8Build-to-Order - 2U 400W 80 Plus High Efficiency Power SupplyBRT-0003-RR-S6 (1)
IS-2U46PD82U 460W 80 Plus High Efficiency Power SupplyBRT-0003-RR-S6 (1)
IS-2U50PD82U 500W 80 Plus High Efficiency Power SupplyBRT-0003-RR-S6 (1)
TC-2U50PD8500W 2U High Efficiency Switching Power SupplyBRT-0303-1 (1)
BRT-0003-RR (1)
TC-2U55PBuild-to-Order - 550W 2U Switching Power SupplyBRT-0003-RR (1)
TC-2U60PD8600W 2U High Efficiency Switching Power SupplyBRT-0303-1 (1)
BRT-0003-RR (1)

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS

P8B-E(4L)ATXASUS

P8B-XATXASUS

P6T WS ProfessionalATXASUS

P6X58-E WSATXASUS

P8B WSATXASUS

P8C WSATXASUS

P8P67 WS REVOLUTIONATXASUS

P8Z77 WSATXASUS

Z9PA-U8ATXASUS

P8B-MXMicro-ATXASUS

C216 WSATXASRock

E3C204ATXASRock

E3C204-4LATXASRock

E3C204-V+ATXASRock

E3C204-V4LATXASRock

H77WS-DLATXASRock

Z77 WSATXASRock

AD2550R/U3S3Mini ITXASRock

S5512ATXTYAN

S5510MicroATXTYAN

S5515MicroATXTYAN

GA-6UASV3microATXGIGABYTE

GA-6UASL3microATXGIGABYTE

GA-6PXSV4ATXGIGABYTE

GA-6PXSV1ATXGIGABYTE

GA-6PXSV2ATXGIGABYTE

GA-6PXSV3ATXGIGABYTE
