Product Detail

4U Compact Stylish Rackmount Chassis with red SEA Bezel and 20" Sliding Rail Kit

Patented Aluminum Front Panel with Locks
Optional BPU-230 2 to 3 Hot-Swappable HDD Cage
Optional Aluminum Chassis
Power and Alarm Reset Switch
Power and HDD LED
Front Access USB2.0 x2
120mm x1 and 80mm x1 Cooling Fan
with 20" Sliding Rail Kit

Product Introduction

iStarUSA 4U industrial rackmount chassis D Storm D-400SEA-RD-RAIL24. Combine with BPU or T Series enable hot-swappable storage capability. It also supports up to seven add-on cards and total storage capacity up to 5 storage drives for RAID configuration. D-400SEA-RD-RAIL24 provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, also with 20" Sliding Rail Kit.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

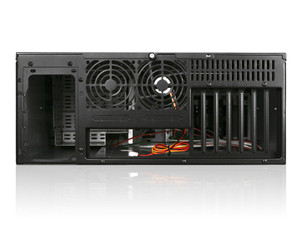

Back Panel

Model Number	D-400SEA-RD-RAIL24
RoHS Compliance	Yes
Form factor	4 U
Standard Drive Bays	3.5" Drives: 1 3.5" Drive (internal): 2 5.25" Drives: 4
Indicators	Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches	Power, Reset
Supported PSU Type	PS2, Mini Redundant
Expansion Slots	7
Security	Front Bezel Key Lock
Material of Front Bezel	Aluminum alloy
Material of Handle	SECC Zinc-Coated Steel
Material of Main Chassis	1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel	Blue
Color of Main Chassis	Black
Front Connector	2x USB 2.0
Motherboard Size	12 x 9.6 (ATX, microATX)
Cooling Fan	1x80mm, 1x120mm
Dimensions (WxHxD)	19.00" x 7.00" x 20.80" 482.6 mm x 177.8 mm x 528.3 mm

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-230SATA	2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	BPU-340SATA	3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-350SATA	3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	DD-FAN80	80mm Ball Bearing Fan
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-HUB-SAUF	3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
	RP-READER35	Build-to-Order - All-in-one USB 2.0 Card Reader
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISF08	8 Ports Fan Sensor Board
	TC-ISTORM7	2x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	BPN-DE230SS	Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPN-DE340SS	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	DD-400-SE-BLACK	4U Black Bezel for SE series
	DD-400-SE-BLUE	4U Blue Bezel for SE series
	DD-400-SE-RED	4U Red Bezel for SE series
	DD-400-SE-SILVER	4U Silver Bezel for SE series
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE230SS-WB	Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE340SS-WB	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	DD-FANBAR	Center Support Bar for D Storm 2U 3U 4U Chassis
	BPN-DE350SS	Trayless 3x 5.25" to 5x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
