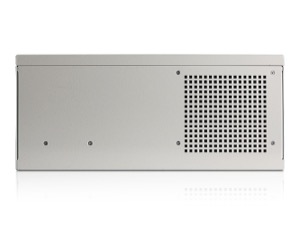

DW-101
Build-to-Order Compact Stylish Industrial Wall-Mounted Chassis
Build-to-Order Compact Stylish Industrial Wall-Mounted Chassis
- Front I/O with Seven Expansion Slots
- 120mm x1, 40mm x1 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
- Support ATX Motherboard
Product Introduction
The DW-101 Wall -mounted Chassis has the durability and flexibility to make this a chassis that can handle any task required. The solid steel construction and removable air filter help this chassis stand up to the most rigorous of conditions. The DW-101 accepts full size ATX motherboards as well as a front size seven slot I/O for any endless expansion. The DW-101 is a rugged wall-mounted chassis solution to all of your needs.
The DW-101 Wall -mounted Chassis has the durability and flexibility to make this a chassis that can handle any task required. The solid steel construction and removable air filter help this chassis stand up to the most rigorous of conditions. The DW-101 accepts full size ATX motherboards as well as a front size seven slot I/O for any endless expansion. The DW-101 is a rugged wall-mounted chassis solution to all of your needs.
| Model Number | DW-101 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
3.5" Drives: 1 3.5" Drive (internal): 1 5.25" Drives: 1 |
| Indicators | Power, HDD |
| Switches | Power, Reset |
| Supported PSU Type | Flex ATX |
| Expansion Slots | 7 |
| Security | None |
| Material of Front Bezel | SGCC 1.2mm |
| Material of Main Chassis | SGCC 1.2mm |
| Color of Front Bezel | Beige |
| Color of Main Chassis | Beige |
| Air Filter | Removable & Washable |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Cooling Fan | 1x40mm, 1x120mm |
| Dimensions (WxHxD) | 12.60" x 6.45" x 15.00" 320.0 mm x 163.8 mm x 381.0 mm |
| Notes | - HTS code: 8473.30.5100 (ECCN is not applicable). |
FAQ
There are no FAQ entries for this model. |
Optional Accessories
| Model # | Description | |
 | BPU-124V2-SS | Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-126-SA | Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-2535-SI | Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack |
 | DIY-RHF03 | Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket |
 | RP-COMBO-SLIM | 5.25" Optical Drive and Floppy Drive Cage Holder |
 | RP-COMBO-SLIM2535 | 2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage |
 | RP-FDD35 | 5.25" Drive Bay Bracket for 3.5" Devices |
 | RP-HDD2.5 | 2.5" to 3.5" Hard Drive Mounting Bracket |
 | RP-HDD25BC | 2.5" HDD SSD Mounting Bracket for 3.5" Bay |
 | RP-HDD25P | 3.5" Drive Bay Bracket for 2x 2.5" SSDs |
 | RP-HDD3.5 | 3.5" to 5.25" Hard Drive Mounting Bracket |
 | RP-HUB-SAUF | 3.5" Combo Hub for USB2.0/ Firewire/ e-SATA |
 | RP-READER35 | Build-to-Order - All-in-one USB 2.0 Card Reader |
 | T-25HD-SI | Build-to-Order - 2.5" SATA HDD SSD Slot Carrier |
 | T5F-SS | EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack |
 | T5-SA | Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack |
 | T-7M1-SATA | 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | T-7-SA | Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack |
 | TC-ISTORM8 | 3.5" to 5.25" Hard Drive Cooling Heat Sink |
 | RP-4HDD255F | EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket |
 | RP-2HDD2535 | 5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives |
 | BPN-DE110SS | Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack |
 | BPU-124DE-SS | 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | T-G525-SS | Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack |
 | BPN-2535DE-SA | 3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-G35-SS | Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | BPN-DE110SS-WB | Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel |
 | BPN-124K-SA | Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-5K3525U-SA | Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0 |
 | T-5K225T-SA | Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-5K35T-SA | Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack |
 | T-5K25TU-SA | Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0 |
 | T-35K25-SA | Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
Compatible Power Supplies
| Model # | Description | Required Bracket(s) | |
| Single | |||
 | TC-1U15FX1 | Special Order - 1U 150W Flex Power Supply | Brackets Not Required |
 | TC-1U18FX1 | 1U 180W Flex Power Supply | Brackets Not Required |
 | TC-1U22FX8 | Special Order - 1U 220W Flex High Efficiency Power Supply | Brackets Not Required |
 | TC-1U30FX8 | 1U 300W Flex High Efficiency Power Supply | Brackets Not Required |
 | TC-1U40FX8G-S | 1U 400W Flex High Efficiency Power Supply | Brackets Not Required |
Compatible Motherboards
| Model # | Motherboard Size | Company Name |
There are no compatibility motherboard for this model. | ||
