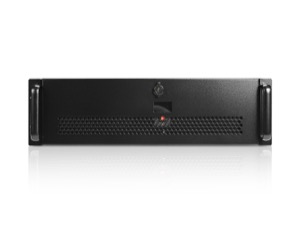

Industrial Chassis | iStarUSA Products | E-30 - Build-to-Order - 3U Rugged 15" Compact Rackmount Chassis

E-30
Build-to-Order - 3U Rugged 15" Compact Rackmount Chassis

Compact 15" Depth
1.6mm Steel Body Chassis
Shock Absorbing Drive Cage
Front Access USB3.0 x2
Removable Air Filter
Fan and Temperature Monitor Option
Industrial Keylock Bezel

Product Introduction
Rugged E-30 rackmount chassis is designed to withstand the toughest and compact environment. E-30 is 3U height with only 15" in depth and special features of front USB access, ball-bearing cooling fan, and system sensor board to enhance functionality and usability for critical missions and applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards
Chassis Combo

Model Number	E-30
RoHS Compliance	Yes
Form factor	3 U
Standard Drive Bays	3.5" Drives: 1 3.5" Drive (internal): 3 5.25" Drives: 1
Indicators	LEDs for Power ON/OFF, HDD, Fan & Alarm
Switches	Power ON/OFF, System & Alarm Reset
Expansion Slots	7
Security	Front Bezel
Material of Front Bezel	1.6mm SECC Zinc-Coated Steel
Material of Handle	1.6mm SECC Zinc-Coated Steel
Material of Main Chassis	1.6mm SECC Zinc-Coated Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	Front USB 3.0 x 2 Connector
Air Filter	Removable & Washable
Motherboard Size	12 x 9.6 (ATX, microATX)
Cooling Fan	1x60mm, 2x80mm
Dimensions (WxHxD)	19.00" x 5.19" x 15.00" 482.6 mm x 131.8 mm x 381.0 mm

Download

Data Sheet (PDF)

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Single
	IS-1U35PD8	Build-to-Order - 1U 350W 80 Plus High Efficiency Power Supply	Brackets Not Required
	IS-1U40PD8	1U 400W 80 Plus High Efficiency Power Supply	Brackets Not Required
	IS-1U46PD8	Build-to-Order - 1U 460W 80 Plus High Efficiency Power Supply	Brackets Not Required
	IS-1U50PD8	1U 500W 80 Plus High Efficiency Power Supply	Brackets Not Required
	TC-1U50PD8	1U 500W High Efficiency Switching Power Supply	Brackets Not Required

Compatible Motherboards

Model #	Motherboard Size	Company Name
P8B-C(4L)	ATX	ASUS

P8B-E(4L)	ATX	ASUS

P8B-X	ATX	ASUS

P6T WS Professional	ATX	ASUS

P6X58-E WS	ATX	ASUS

P8B WS	ATX	ASUS

P8C WS	ATX	ASUS

P8P67 WS REVOLUTION	ATX	ASUS

P8Z77 WS	ATX	ASUS

Z9PA-U8	ATX	ASUS

P8B-MX	Micro-ATX	ASUS

C216 WS	ATX	ASRock

E3C204	ATX	ASRock

E3C204-4L	ATX	ASRock

E3C204-V+	ATX	ASRock

E3C204-V4L	ATX	ASRock

H77WS-DL	ATX	ASRock

Z77 WS	ATX	ASRock

AD2550R/U3S3	Mini ITX	ASRock

S5512	ATX	TYAN

S5510	MicroATX	TYAN

S5515	MicroATX	TYAN

GA-6UASV3	microATX	GIGABYTE

GA-6UASL3	microATX	GIGABYTE

GA-6PXSV4	ATX	GIGABYTE

GA-6PXSV1	ATX	GIGABYTE

GA-6PXSV2	ATX	GIGABYTE

GA-6PXSV3	ATX	GIGABYTE

Chassis Combo

Model #

HDD Tray

Front Bezel
Color

Hotswap
3.5" Bay

Hotswap
2.5" Bay

Ext
5.25"

Ext
3.5"

HDD Type

E30-25M2	Trayless	Black	0	2	1	0	2.5" SATA I/II
E30-DE1BK	Trayless	Black	1	0	0	1	3.5" SAS I/II & SATA I/II/III
E30-DE1SL	Trayless	Black	1	0	0	1	3.5" SAS I/II & SATA I/II/III
E30-DE1BL	Trayless	Black	1	0	0	1	3.5" SAS I/II & SATA I/II/III
E30-DE1RD	Trayless	Black	1	0	0	1	3.5" SAS I/II & SATA I/II/III
E30-B126	Tray	Black	0	6	0	1	2.5" SATA I/II/III
E30-B124	Tray	Black	0	4	0	1	2.5" SAS I/II & SATA I/II/III
E30-M1BK	Tray	Black	1	0	0	1	3.5" SAS I/II & SATA I/II/III
E30-M1SL	Tray	Black	1	0	0	1	3.5" SAS I/II & SATA I/II/III
E30-M1BL	Tray	Black	1	0	0	1	3.5" SAS I/II & SATA I/II/III
E30-M1RD	Tray	Black	1	0	0	1	3.5" SAS I/II & SATA I/II/III
E30-M1PL	Tray	Black	1	0	0	1	3.5" SAS I/II & SATA I/II/III
E30-T7	Tray	Black	1	0	0	1	3.5" SAS I/II & SATA I/II/III
E30-T5F	Trayless	Black	1	0	0	1	3.5" SAS I/II & SATA I/II/III
