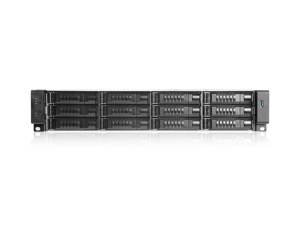

2U 12-Bay Storage Server Rackmount Chassis 12Gb/s HDD SSD SFF-8643 Backplane

Fiber Optical Drive Tray Status Indicator
Fully RoHS Compliance
Power/Alarm Reset Switch
Power + Fan Failure + HDD LED Indicator
Front Access USB Connector
HD miniSAS (SFF-8643) HDD Backplane
Support EATX Motherboard
4 Cooling Fans with Status Monitor
Advance Thermal Cooling Design Optimizes Airflow
Supports Both 2.5" and 3.5" SAS I/II/III and SATA I/II/III HDD/SSD
High Performance Transfer Rate up to 12Gb/s

Product Introduction

The E storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make E series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the HD miniSAS 12Gb/s backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	E2M12HD
RoHS Compliance	Yes
Form factor	2 U
Standard Drive Bays	2.5" Drive (internal): 2 Hotswap 3.5": 1
Hotswap HDD Type	2.5" & 3.5" SAS I/II/III & SATA I/II/III
Indicators	Power + Fan Failure + HDD LED
Switches	Power, Reset, Mute
Supported PSU Type	2U
Expansion Slots	6 (Low profile)
Material of Handle	Aluminum
Material of Main Chassis	Heavy-duty SGCC Cold-rolled Steel
Front Connector	1x USB 3.0
Motherboard Size	12 x 13 (EATX, ATX, microATX)
Cooling Fan	4x80mm
Dimensions (WxHxD)	19.00" x 3.50" x 27.00" 482.6 mm x 88.9 mm x 685.8 mm

Download

Data Sheet

Product Drawing

FAQ

Q :	How to install IX-750S2UPD8G power supply?
A :	Please refer to the PDF file.
Q :	How to install IS-500/600/700S2UP power supply
A :	Please refer to the PDF file.

Optional Accessories

	Model #	Description
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	K-HD43-50	12 Gb/s HD miniSAS SFF-8643 50 cm Cable
	K-HD43R-50	12 Gb/s HD miniSAS SFF-8643 Right Angle 50 cm Cable
	K-HD43RR-50	12 Gb/s HD miniSAS SFF-8643 Right Angle 50 cm Cable

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-500S2UP	Build-to-Order - 500W 2U Redundant Power Supply
	IS-700S2UP	Build-to-Order - 700W 2U Redundant Power Supply
Single
	TC-2U50PD8	EOL - 500W 2U High Efficiency Switching Power Supply
	TC-2U60PD8	EOL - 600W 2U High Efficiency Switching Power Supply
	TC-2U70PD8	700W 2U High Efficiency Switching Power Supply
	TC-2U80PD8	2U 800W High Efficiency Switching Power Supply

Compatible Motherboards

Model #	Motherboard Size	Company Name
