Product Detail

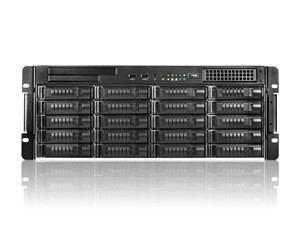

4U 20-Bay Storage Server Rackmount Chassis 12Gb/s HDD SSD SFF-8643 Backplane

Fiber Optical Drive Tray Status Indicator
Advance Thermal Cooling Design Optimizes Airflow
3 Cooling Fans with Status Monitor
Support EATX Motherboard
HD miniSAS (SFF-8643) HDD Backplane
Front Access USB Connector
Power + Fan Failure + HDD LED Indicator
Power/Alarm Reset Switch
Fully RoHS Compliance
Supports Both 2.5" and 3.5" SAS I/II/III and SATA I/II/III HDD/SSD
High Performance Transfer Rate up to 12Gb/s

Product Introduction

The E storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make E series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the HD miniSAS 12Gb/s backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	E4M20HD
RoHS Compliance	Yes
Form factor	4 U
Standard Drive Bays	3.5" Drives: 1 3.5" Drive (internal): 1 Hotswap 3.5": 1 Slim 3.5" FDD: 1 Slim 5.25" Optical: 1
Hotswap HDD Type	2.5" & 3.5" SAS I/II/III & SATA I/II/III
Indicators	Power + Fan Failure + HDD LED
Switches	Power On/Off, Reset, Mute
Expansion Slots	7
Material of Handle	Aluminum
Material of Main Chassis	Heavy-duty SGCC Cold-rolled Steel
Motherboard Size	12 x 13 (EATX, ATX, microATX)
Cooling Fan	3x120mm
Dimensions (WxHxD)	19.00" x 7.00" x 27.00" 482.6 mm x 177.8 mm x 685.8 mm

Download

Data Sheet

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	K-HD43-50	12 Gb/s HD miniSAS SFF-8643 50 cm Cable
	K-HD43R-50	12 Gb/s HD miniSAS SFF-8643 Right Angle 50 cm Cable
	K-HD43RR-50	12 Gb/s HD miniSAS SFF-8643 Right Angle 50 cm Cable

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-550R8P	EOL - 550W PS2 Mini Redundant Power Supply
	IS-700R3NP	Build-to-Order - 700W PS2 Mini Redundant Power Supply
	IS-800R3NP	Special Order - 800W PS2 Mini Redundant Power Supply
	IS-950R3NPD8	Build-to-Order - 950W 80 Plus PS2 Mini Redundant Power Supply
	IS-1000R3NP	EOL - 1000W PS2 Mini Redundant Power Supply
Single
	IS-680PD8	Build-to-Order - 680W PS2 ATX High Efficiency Switching Power Supply
	IS-780PD8	Build-to-Order - 780W PS2 ATX High Efficiency Switching Power Supply
	IS-880PD8	Build-to-Order - 880W PS2 ATX High Efficiency Switching Power Supply
	IS-1000PD8	Build-to-Order - 1000W PS2 ATX 80 Plus High Efficiency Switching Power Supply

Compatible Motherboards

Model #	Motherboard Size	Company Name
There are no compatibility motherboard for this model.
