Product Detail

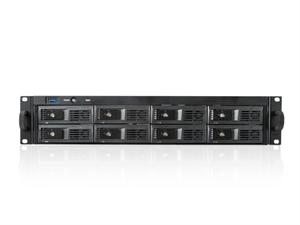

2U 8-Bay Trayless Storage Server Rackmount Chassis 12Gb/s HDD SFF-8643 Backplane

8 trayless hot-swappable bays for 3.5" HDDs
Worlds first trayless server rackmount
HD miniSAS (SFF-8643) HDD Backplane
Metal key lock for HDD front bezel
Fully RoHS compliant
USB 3.0 in front for easy access
Supports standard ATX power supplies
Compatible with redundant power supplies
High density storage server chassis
Supports 3.5" SAS I/II/III and SATA I/II/III HDD
High Performance Transfer Rate up to 12Gb/s

Product Introduction

The M-280HD-MATX M series of trayless storage server rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage servers. The chassis is equipped with two HD miniSAS (SFF-8643) backplanes to support the latest SAS and SATA hard drives and also is compatible with ATX power supplies. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	M-280HD-MATX
RoHS Compliance	Yes
Form factor	2 U
Standard Drive Bays	2.5" Drive (internal): 1 Hotswap 3.5": 1
Hotswap HDD Type	3.5" SAS I/II/III & SATA I/II/III
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	Standard ATX (PS2)
Expansion Slots	4 (Low profile)
Security	Key Lock
Material of Front Bezel	Aluminum with Steel
Material of Handle	Aluminum
Material of Main Chassis	Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	1x USB 3.0
Motherboard Size	9.6 x 9.6 (microATX, mini-ITX)
Cooling Fan	3x80mm
Dimensions (WxHxD)	19.00" x 3.47" x 22.80" 482.6 mm x 88.1 mm x 579.1 mm
Notes	- each hdd backplane (for 4 hard drives) requires two Molex power connectors from the power supply.

Download

Data Sheet

Product Drawing

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	CAGE-AAMMMI50-H-90	Internal miniSAS SFF-8087 Right Angle 50cm Cable
	RP-RAIL-26-1UB	26" Slim Sliding Rail Kit for M Series 2U 3U 4U Rackmount Chassis

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-550R8P	EOL - 550W PS2 Mini Redundant Power Supply
Single
	TC-500PD8B	500W PS2 ATX High Efficiency Switching Power Supply
	TC-700PD8B	700W PS2 ATX High Efficiency Switching Power Supply

Compatible Motherboards

Model #	Motherboard Size	Company Name
There are no compatibility motherboard for this model.
