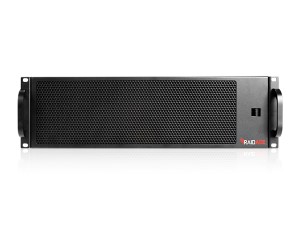

NAS 3U 12-bay 3.5" SATA 6.0Gb/s Trayless Rackmount Chassis

Supports 12x SATA 6Gb/s Hard Drives
LED Indicators for Power and Activity on Each Hard Drive
3x 120mm Cooling Fans for Ventilation
Trayless Design

Product Introduction

DAGE312UTL-NAS is an external 3U-12 bay hot-swappable SATA rackmount disk array NAS storage chassis. It provides users a most big storage capacity for up to 12 hard drives for RAID configurations in 3U form factor. Three 120mm ball bearing fans offer long lasting and enhanced thermal cooling solution. DAGE312UTL-NAS provides maximum storage and performance to high density storage system.

Specifications	Download	FAQ
Accessories	Connection Diagram

Model Number	DAGE312UTL-NAS
RoHS Compliance	Yes
Form factor	3 U
Host Interface	RJ45
HDD Interface	3.5" SATA I/II/III
LED Display	Power and HDD Activity
Material	Steel
Main Color	Black
Power Supply	500W
Raid Level	0,1,3,5,6,10, 30, 50, 60
Cooling Fan	3x120mm
Dimensions (WxHxD)	19.00" x 5.25" x 22.83" 482.6 mm x 133.4 mm x 579.9 mm

Download

User's Manual

Product Quick Guide (PDF)

NAS-Finder.zip

FAQ

There are no FAQ entries for this model.

Accessories

	Model #	Description
	RP-RAIL-26S	EOL - 26" Slim Sliding Rail Kit for M Series 2U 3U 4U Rackmount Chassis
