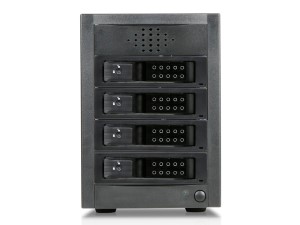

DAGE440DE-MS
4-bay 3.5" SAS/SATA 6.0 Gb/s miniSAS Trayless JBOD Enclosure
  • Supports 4x 3.5" SAS/SATA 6Gb/s Hard Drives
  • 2x 80mm Cooling Fans for Ventilation
  • miniSAS (SFF8088) Connector for Fast Data Transfer Speed
  • Hot-swappable Both on Host and Device
  • Trayless Design
  • Individual Lock of each HDD Tray for Physical Security
  • LED Indicators for Power and Activity on Each Hard Drive
  • Supports up to 6.0Gb/s Data Transfer Speed Per Port/Channel; Total Bandwidth up to 24Gb/s
Product Introduction
DAGE440DE-MS is an external 4-bay trayless SAS/SATA disk array storage tower. It provides users a most big storage capacity for up to 4 hard drives for RAID configurations. This external tower is designed with one high quality SFF8088 connector. Two quiet 80mm cooling fans offer long lasting and enhanced thermal cooling solution.

Model NumberDAGE440DE-MS
RoHS Compliance VersionYes
Host Interface1x miniSAS (SFF8088)
HDD Interface3.5" SAS I/II & SATA I/II/III
Hotswap 3.5"4
LED DisplayPower and HDD Activity
MaterialSteel
Main ColorBlack
Power Supply250
Raid LevelConfigured by Host Controller
Cooling Fan2x80mm
Ordering Information
(Part Number)
Black HDD Handle:DAGE440DEBK-MS
Blue HDD Handle:DAGE440DEBL-MS
Red HDD Handle:DAGE440DERD-MS
Silver HDD Handle:DAGE440DESL-MS
Wood Look HDD Handle:DAGE440DEWB-MS
Dimensions (WxHxD)8.00" x 11.00" x 16.00"
203.2 mm x 279.4 mm x 406.4 mm
FAQ


There are no FAQ entries for this model.
Accessories

ImageAccessoryDescription
K-HD4488-1MHD miniSAS SFF-8644 to miniSAS SFF-8088 1 meter Cable
K-SF88-1MminiSAS SFF-8088 1 meter Cable

Connection Diagram
