4U 8-bay SAS/SATA 12Gb/s SFF-8644 JBOD Hotswap Chassis

Product Introduction

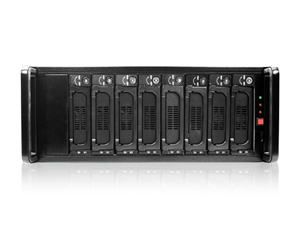

JAGE480HD-T7 is an external 4U-8 bay hot-swappable SAS/SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 8 hard drives for RAID configurations. This 4U-8 Bay external SATA enclosures is designed with 2 high quality HD miniSAS (SFF8644) connectors. One 120mm Ball bearing fan offer long lasting and enhanced thermal cooling solution. DAGE408UT7-2HD provides maximum storage and performance to high density storage system.

Specifications	Download	FAQ
Accessories	Connection Diagram

Model Number	JAGE480HD-T7
RoHS Compliance	Yes
Form factor	4 U
Host Interface	2x HD miniSAS (SFF-8644)
HDD Interface	2.5" & 3.5" SAS I/II/III & SATA I/II/III
Hot Swap	Both on Host and Device
LED Display	Power and HDD Activity
Material	Chassis: 1.2 mm SECC Zinc-Coated Steel
Main Color	Black
Power Supply	500W
Raid Level	Configured by Host Controller
Cooling Fan	1x120mm
Dimensions (WxHxD)	19.00" x 7.00" x 20.00" 482.6 mm x 177.8 mm x 508.0 mm

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.

Accessories

Model #

Description

Connection Diagram
