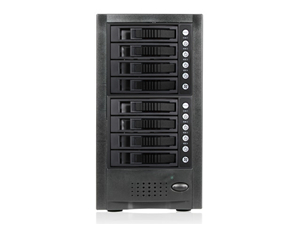

Industrial Chassis | iStarUSA Products | JAGE6BT8HD - 8-bay SAS/SATA 12Gb/s SFF-8644 Hotswap JBOD Enclosure

JAGE6BT8HD
8-bay SAS/SATA 12Gb/s SFF-8644 Hotswap JBOD Enclosure

Comes with 300W Power Supply
Compatible with PS/2 AT Power Supply
Heavy Duty SECC Construction
Stylish aluminum color handle
Support Hot-Swap & RAID Configuration (need an additional RAID controller)
High Performance Transfer Rate up to 12Gb/s
Supports Both 2.5" and 3.5" SAS I/II/III & SATA I/II/III HDD/SSD Drive Cage Equipped with Fan Speed Control Switch

Product Introduction
JAGE6BT8HD is an external 8-bay SAS/SATA disk array storage tower. It provides users a most big storage capacity for up to 8 hard drives for RAID configurations. This external tower is designed with high quality SFF8644 connectors. Two quiet 80mm cooling fans offer long lasting and enhanced thermal cooling solution.

Specification	Download	FAQ
Accessories	Connection Diagram

Model Number	JAGE6BT8HD
RoHS Compliance	Yes
Host Interface	2x HD miniSAS (SFF-8644)
HDD Interface	2.5" & 3.5" SAS I/II/III & SATA I/II/III
Hotswap 3.5"	8
LED Display	Power and HDD Activity
Material	Steel
Main Color	Black
Power Supply	300W
Raid Level	Configured by Host Controller
Cooling Fan	2x80mm
Ordering Information (Part Number)	Black HDD Handle:JAGE6BT8HDBK Blue HDD Handle:JAGE6BT8HDBL Red HDD Handle:JAGE6BT8HDRD Silver HDD Handle:JAGE6BT8HDSL
Dimensions (WxHxD)	8.00" x 14.00" x 18.00" 203.2 mm x 355.6 mm x 457.2 mm
