IS-800R8PUC
800W PS2 Mini High Efficiency Redundant Power Supply
  • Efficiency: 80% at full load
  • PSON Remote on/off Control
  • Power Failure Alarm & Signals
  • Power Status LED on Module
  • OVP (Over Voltage Protection)
  • OCP (Over Current Protection)
  • SCP (Short Circuit Protection)
  • OTP (Over Temperature Protection)
  • MTBF > 250000 Hours
  • Meet IEC62368
Product Introduction
XEAL dual AC input Mini Redundant Power Supply IS-800R8PUC. It offers your server and workstation zero down time with full 800w power redundancy.Hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. Standard PS2 form factor fits most ATX or 4U chassis. A good start for your mission critical system integrations.

Model NumberIS-800R8PUC
RoHS ComplianceYes
Output Wattage800
Efficiency80%
Connector TypeMain Connector :: 20+4 pin
4pin 12V :: 1
8pin EPS 12V :: 1
Molex :: 9
SATA :: 4
Floppy :: 1
6pin PCIE :: 1
Dimensions (WxHxD)5.91" x 3.35" x 7.84"
150.1 mm x 85.1 mm x 199.1 mm
Parts & Accessories

ImageAccessoryDescription

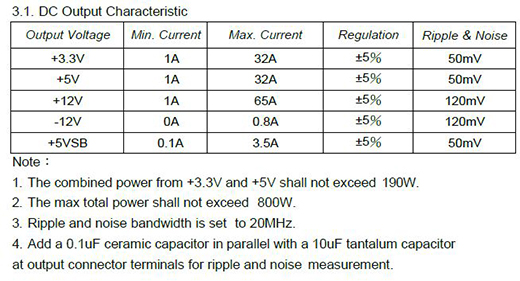

Output
