IS-850R2UPD8UC
850W 2U CRPS High Efficiency Redundant Power Supply
  • Universal Input, Active PFC
  • MTBF > 250000 Hours
  • Power Failure Alarm & Signals
  • High Efficiency 85% minimum
  • PMBus Support
  • OPP (Over Power Protection)
  • OVP (Over Voltage Protection)
  • OCP (Over Current Protection)
  • SCP (Short Circuit Protection)
  • Meet IEC62368
Product Introduction

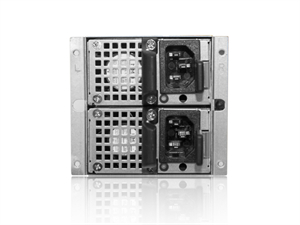

XEAL dual AC input high efficiency 2U CRPS 850W redundant power supply IS-850R2UPD8UC. It offers your server and workstation zero down time with full 850W power redundancy. Active PFC, Automatic Fan Thermal Control, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. This is a new generation power supply with PMBus Support to provide a reliable power supply for your mission critical system integration.

Model NumberIS-850R2UPD8UC
RoHS ComplianceYes
Output Wattage850
Efficiency85%
Connector TypeMain Connector :: 24 pin
8pin EPS 12V :: 2
Molex :: 4
SATA :: 3
Floppy :: 1
8pin PCIE :: 2
Dimensions (WxHxD)2.99" x 3.30" x 9.05"
75.9 mm x 83.8 mm x 229.9 mm
Download
Parts & Accessories

ImageAccessoryDescription

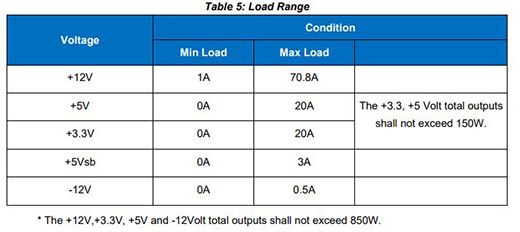

Output
