IX-400RSH1UP8UC
COMING SOON - 400W 1U High Efficiency Redundant Power Supply
COMING SOON - 400W 1U High Efficiency Redundant Power Supply
- Universal Input, Active PFC
- High Efficiency 95% minimum
- PMBus Support
- Over Temperature Protection (OTP)
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Short Circuit Protection
- MTBF > 100,000 Hours
- Power Failure Alarm & Signals
- Meet IEC62368
Product Introduction
XEAL 1U redundant 1+1 106mm series power supplies are designed with hot-swap module function to maintain utmost system availability and power sharing features that extend power module life. It provides a greatly reliable power solution for compact high performance computing systems. This 1+1 series is 1U height and side by side module configuration to fit the most compact format while still offers power redundancy.
XEAL 1U redundant 1+1 106mm series power supplies are designed with hot-swap module function to maintain utmost system availability and power sharing features that extend power module life. It provides a greatly reliable power solution for compact high performance computing systems. This 1+1 series is 1U height and side by side module configuration to fit the most compact format while still offers power redundancy.
| Model Number | IX-400RSH1UP8UC |
| RoHS Compliance | Yes |
| Output Wattage | 400 |
| Efficiency | 95% |
| Connector Type | Main Connector :: 20+4 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 3 SATA :: 4 Floppy :: 1 |
| Dimensions (WxHxD) | 4.17" x 1.63" x 8.66" 105.9 mm x 41.4 mm x 220.0 mm |
Parts & Accessories
| Image | Accessory | Description |

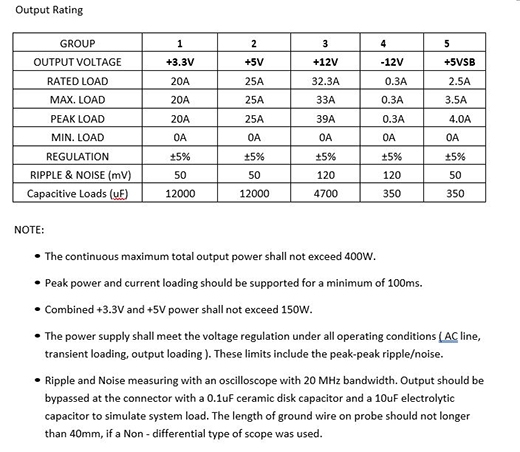

Output
