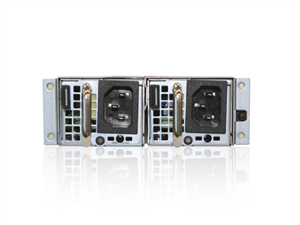

IX-700RSH1UP8UC
700W 1U High Efficiency Redundant Power Supply
700W 1U High Efficiency Redundant Power Supply
- Universal Input, Active PFC
- High Efficiency 85% minimum
- PMBus Support
- Over Temperature Protection (OTP)
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Short Circuit Protection
- MTBF > 250,000 Hours
- Power Failure Alarm & Signals
- Meet IEC62368
Product Introduction
XEAL 1U redundant 1+1 106mm series power supplies are designed with hot-swap module function to maintain utmost system availability and power sharing features that extend power module life. It provides a greatly reliable power solution for compact high performance computing systems. This 1+1 series is 1U height and side by side module configuration to fit the most compact format while still offers power redundancy.
XEAL 1U redundant 1+1 106mm series power supplies are designed with hot-swap module function to maintain utmost system availability and power sharing features that extend power module life. It provides a greatly reliable power solution for compact high performance computing systems. This 1+1 series is 1U height and side by side module configuration to fit the most compact format while still offers power redundancy.
| Model Number | IX-700RSH1UP8UC |
| RoHS Compliance | Yes |
| Output Wattage | 700 |
| Efficiency | 85% |
| Connector Type | Main Connector :: 24 pin 8pin EPS 12V :: 2 Molex :: 4 SATA :: 3 Floppy :: 1 8pin PCIE :: 2 |
| Dimensions (WxHxD) | 4.17" x 1.63" x 10.24" 105.9 mm x 41.4 mm x 260.1 mm |
Parts & Accessories
| Image | Accessory | Description |

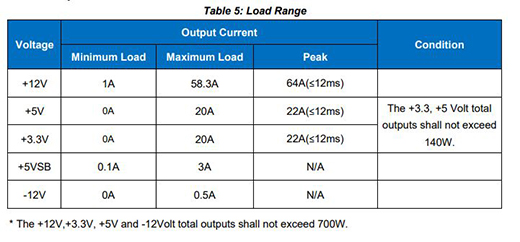

Output
