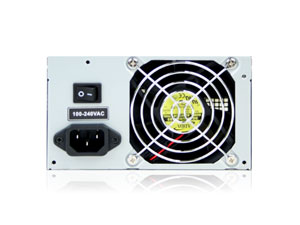

TC-500PD8B
500W PS2 ATX High Efficiency Switching Power Supply
  • Complies with ATX/EPS 12V Standards
  • Dual 12V Rails
  • High Reliability: MTBF>100,000 hours
  • Protection: Over Current, Over Voltage, and Short-Circuit
  • Active PFC Circuit
  • Full Range Input
  • 80mm Dual Ball Bearing Fan
  • High Efficiency 82% minimum
  • ROHS Compliance
Product Introduction
The TC-500PD8B high performance switching power supply supports latest motherboard connectors of 20, 24, 8, and 4 pins. High efficiency saves you on electric bills and less cooling requirement. Dual 12V rails increase overall system stability. TC-500PD8B is the ideal power supply for server and high-end gaming workstation.

Model NumberTC-500PD8B
RoHS ComplianceYes
Output Wattage500
Efficiency80%
Connector TypeMain Connector :: 20+4 pin
4+4pin 12V :: 1
8pin EPS 12V :: 1
6+2 Pin PCIE :: 1
Molex :: 5
SATA :: 4
Floppy :: 1
6pin PCIE :: 1
Dimensions (WxHxD)5.91" x 3.39" x 5.51"
150.1 mm x 86.1 mm x 140.0 mm
Download
Parts & Accessories

ImageAccessoryDescription

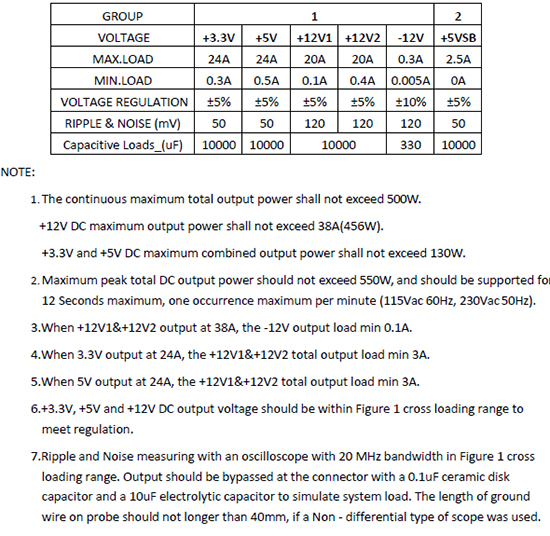

Output

FAQ


There are no FAQ entries for this model.

Featured Videos

There are currently no iStarVideos for this Item.
