DAGE1240DE1BK-3MS
12-bay 3.5" SAS/SATA 6.0 Gb/s miniSAS Trayless JBOD Enclosure Black

Supports 12x 3.5" SAS/SATA 6Gb/s Hard Drives
LED Indicators for Power and Activity on Each Hard Drive
Individual Lock of each HDD Tray for Physical Security
2x 120mm Cooling Fans for Ventilation
3x miniSAS (SFF8088) Connectors for Fast Data Transfer Speed
Trayless Design
Hot-swappable Both on Host and Device
Supports up to 6.0Gb/s Data Transfer Speed Per Port/Channel; Total Bandwidth up to 24Gb/s per Connector

Product Introduction

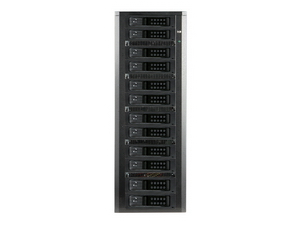

DAGE1240DE1-3MS is an external 12-bay trayless SAS/SATA disk array storage tower. It provides users a most big storage capacity for up to 12 hard drives for RAID configurations. This external tower is designed with high quality SFF8088 connectors. Two quiet 120mm cooling fans offer long lasting and enhanced thermal cooling solution.

6GBps

Hot Swap

SAS/SATA HDD Compatible

Security Lock

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	DAGE1240DE1BK-3MS
RoHS Compliance Version	Yes
Standard Drive Bays	None
Material of Main Chassis	Steel
Color of Main Chassis	Black
Cooling Fan	2x120mm
Ordering Information (Part Number)	Black HDD Handle:DAGE1240DE1BK-3MS Blue HDD Handle:DAGE1240DE1BL-3MS Red HDD Handle:DAGE1240DE1RD-3MS Silver HDD Handle:DAGE1240DE1SL-3MS Wood Look HDD Handle:DAGE1240DE1WB-3MS
Dimensions (WxHxD)	9.00" x 26.00" x 18.00" 228.6 mm x 660.4 mm x 457.2 mm

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	K-HD4488-1M	HD miniSAS SFF-8644 to miniSAS SFF-8088 1 meter Cable
	K-SF88-1M	miniSAS SFF-8088 1 meter Cable

Compatible Power Supplies

Model #

Description

Required
Bracket(s)

Compatible Motherboards

Model #	Motherboard Size	Company Name
There are no compatibility motherboard for this model.
