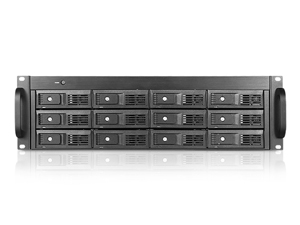

DAGE312UTL-3MS
3U 12-bay 3.5" SAS/SATA 6.0Gb/s miniSAS SFF8088 JBOD Trayless Rackmount Chassis

Supports 12x 3.5" SAS/SATA 6Gb/s Hard Drives
LED Indicators for Power and Activity on Each Hard Drive
3x 80mm Cooling Fans for Ventilation
3x miniSAS (SFF8088) Connectors for Fast Data Transfer Speed
Trayless Design
Hot-swappable Both on Host and Device
Supports up to 6.0Gb/s Data Transfer Speed Per Port/Channel; Total Bandwidth up to 24Gb/s per Connector

Product Introduction
DAGE312UTL-3MS is an external 3U-12 bay hot-swappable SAS/SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 12 hard drives for RAID configurations. This 3U-12 bay external SAS/SATA JBOD is designed with 3 high quality miniSAS (SFF8088) connectors. Three 80mm ball bearing fans offer long lasting and enhanced thermal cooling solution. DAGE312UTL-3MS provides maximum storage and performance to high density storage system.

6GBps

Hot Swap

SAS/SATA HDD Compatible

Trayless

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	DAGE312UTL-3MS
RoHS Compliance Version	Yes
Form factor	3 U
Standard Drive Bays	None
Material of Main Chassis	Steel
Color of Main Chassis	Black
Cooling Fan	3x80mm
Ordering Information (Part Number)	with 500W Single PSU: DAGE312UTL-3MS with 550W Redundant PSU: DAGE312UTL-3MS-R
Dimensions (WxHxD)	19.00" x 5.20" x 20.90" 482.6 mm x 132.1 mm x 530.9 mm

Download

Controller Reference

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	RP-RAIL-26S	EOL - 26" Slim Sliding Rail Kit for M Series 2U 3U 4U Rackmount Chassis
	K-HD4488-1M	HD miniSAS SFF-8644 to miniSAS SFF-8088 1 meter Cable
	K-SF88-1M	miniSAS SFF-8088 1 meter Cable

Compatible Power Supplies

Model #

Description

Required
Bracket(s)

Compatible Motherboards

Model #	Motherboard Size	Company Name
There are no compatibility motherboard for this model.
