  Home > Chassis Division > Products > Usb 3.0 & Esata-pm > DAGE540M1SL-SAU3

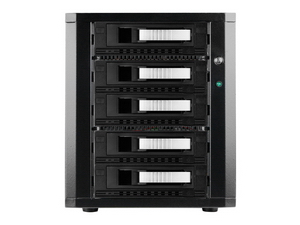

DAGE540M1SL-SAU3
EOL - 5-bay 3.5" SATA USB 3.0 eSATA-Port Multiplier Hotswap Enclosure Silver
  • LED Indicators for Power and Activity on Each HDD Tray
  • 80mm x 2 Cooling Fans for Ventilation
  • Supports 3.5" SATA I/II/III HDDs
  • Color Trays as Options
  • Support USB 3.0 and eSATA-Port Multiplier Interfaces for Easy Connection
  • Chipset: JMicron JMB393
  • Support 6.0 Gb/s SATA HDDs


Product Introduction
DAGE540M1-SAU3 is an external 5 bay hot-swappable SATA I/II/III disk array storage tower with hardware RAID built-in. It provides users a big storage capacity for up to 5 SATA drives for 0,1,3,5,10,JBOD (Big drive mode), Clone, and Individual (PM mode) RAID configurations. This external tower is designed with one high quality USB 3.0 and eSATA (Port Multiplier) connectors. Ball bearing 80mm cooling fan offers long lasting and enhanced thermal cooling solution. DAGE540M1-SAU3 provides maximum storage and performance to high density storage system.

6GBps Hot Swap SAS/SATA HDD Compatible

Model NumberDAGE540M1SL-SAU3
RoHS Compliance VersionYes
Standard Drive Bays None
Material of Main ChassisSteel
Color of Main ChassisBlack
Cooling Fan2x80mm
Ordering Information
(Part Number)
Black HDD Handle:DAGE540M1BK-SAU3
Blue HDD Handle:DAGE540M1BL-SAU3
Red HDD Handle:DAGE540M1RD-SAU3
Silver HDD Handle:DAGE540M1SL-SAAU3
Dimensions (WxHxD)8.00" x 11.00" x 16.00"
203.2 mm x 279.4 mm x 406.4 mm


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
CAGE-ESA2ESABuild-to-Order - ESATA to ESATA External SATA Cable

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
