TC-1U40FX8G-S
1U 400W Flex High Efficiency Power Supply
- Complied with Flex ATX and ATX12V Standard
- High Efficiency 87% minimum
- Active Power Factor Correction (PFC) Meet EN61000-3-2
- Compatible with European Union Directive 2011/65/EU (RoHS2)
- Low Noise and Ripple
- Output Over Voltage, Short Circuit, and Over Current Protection
- 100% Hi-pot, ATE, and Burn-in Tested
Product Introduction
TC-1U40FX8G-S 1U 400W Flex ATX power supply is designed to fit perfectly into your 1U rackmount chassis. Feature such as low noise, triple circuit protections, and active PFC. TC-1U40FX8G-S is the compact and versatile 1U power supply.
| Model Number | TC-1U40FX8G-S |
| RoHS Compliance | Yes |
| Output Wattage | 400 |
| Efficiency | 80% |
| Connector Type | Main Connector :: 24 pin 4+4pin 12V :: 1 Molex :: 3 SATA :: 4 Floppy :: 1 |
| Dimensions (WxHxD) | 3.20" x 1.60" x 5.90" 81.3 mm x 40.6 mm x 149.9 mm |
Parts & Accessories
| Image | Accessory | Description |

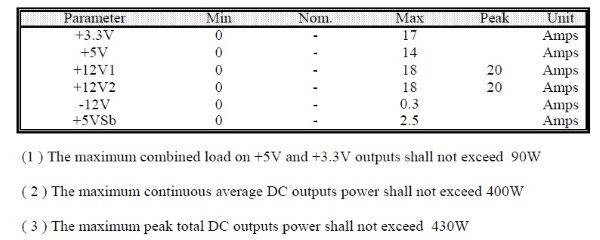

Output
FAQ
| Q : | What is the dBA of the power supply? |
| A : |
43 dBA max. |
Featured Videos
Compatible Chassis
| Model # | Description | |
|
S-46 | 1U 400W Flex High Efficiency Power Supply |
|
S-46-DE6 | 1U 400W Flex High Efficiency Power Supply |
|
S-46-DE6BL | 1U 400W Flex High Efficiency Power Supply |
|
S-46-DE6BK | 1U 400W Flex High Efficiency Power Supply |
|
S-46-DE6RD | 1U 400W Flex High Efficiency Power Supply |
|
S-46-DE6SL | 1U 400W Flex High Efficiency Power Supply |
|
S-46-DE6WB | 1U 400W Flex High Efficiency Power Supply |
|
DW-101 | 1U 400W Flex High Efficiency Power Supply |
|
U-140HD | 1U 400W Flex High Efficiency Power Supply |
