IS-550R8P-F

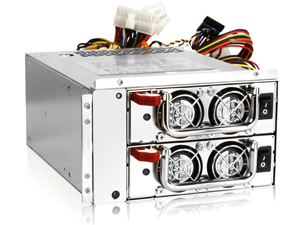

Build-to-Order - 550W Front Mounting PS2 Mini Redundant Power Supply
  • Universal Input, Active PFC
  • Efficiency: 74% at full load
  • Industrial Japanese Components 40 deg.C temperature
  • Automatic Thermal Control (reduce Fan Speed)
  • Backward Compatibility, -5V Available
  • Industrial DIN-Connector for Reliability
  • Remote Sense on +5v,+3.3V & +12V
  • Power Failure Alarm & Signals
  • Power Status LED on Module
  • OVP (Over Voltage Protection) / module
  • OVP (Over Voltage Protection)
  • OCP (Over Current Protection) / module
  • External OCP (Over Current Protection)
  • SCP (Short Circuit Protection)
  • MTBF > 100,000 Hours



Model NumberIS-550R8P-F
RoHS Compliance VersionYes
Output Wattage550
Efficiency.74
Noise Level27 ~ 37 dB
Dimensions (WxHxD)5.91" x 3.35" x 7.83"
150.1 mm x 85.1 mm x 198.9 mm
