Product Specifications
Model NumberFS-1017
RoHS ComplianceYes

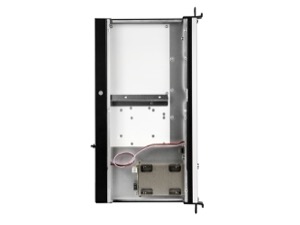

Standard Drive Bays Internal Drive Bay : 2.5" HDD x 1.
Hot Swappable Drive Bay: SATA 2.5" HDD tray x1 (Hot-swap)

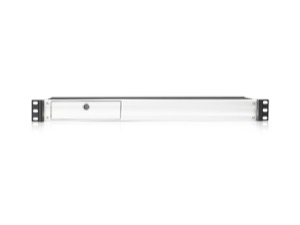

Front PanelPower SW x1 + LED + HDD LCD
USB x2 (USB3.0 optional).

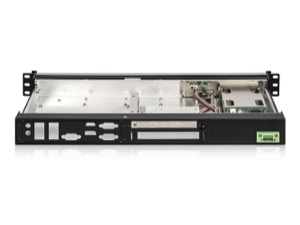

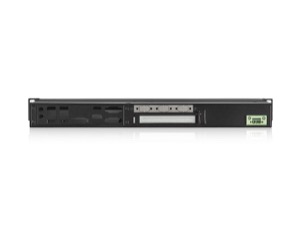

Back PanelStandard I/O shield.
Solt-card x1.
Form Factor:1U
Motherboard Size:For Mini-ITX MB
External Adapter Input1. C7(80W) 12 DCVin Converter.
2.C4(150W) 19V-24V Cnverter
Dimensions (WxHxD)17.00" x 1.75" x 9.40"
431.8 mm x 44.4 mm x 238.8 mm
Compatible Motherboards

Images Model # Motherboard Size Company Name Processor family Compatible processor
SBC-230 3.5" SBC (5.8-in x 4.0-in) asrock Intel Apollo Lake E3940
N4200
N3350

SBC-E230 3.5" SBC (5.8-in x 4.0-in) asrock Intel Apollo Lake E3940
N4200
N3350

SBC-E230-WT 3.5" SBC (5.8-in x 4.0-in) asrock Intel Apollo Lake E3940
N4200
N3350

SBC-220 3.5" SBC (5.8-in x 4.0-in) asrock Intel Braswell N3160
N3150

SBC-210 3.5" SBC (5.8-in x 4.0-in) asrock Intel Baytrail E3845
E3826
J1900
N2930
N2920

SBC-211 3.5" SBC (5.8-in x 4.0-in) asrock Intel Baytrail E3845
E3826
J1900
N2930
N2920

SBC-212-WT 3.5" SBC (5.8-in x 4.0-in) asrock Intel Baytrail E3845
E3826
J1900
N2930
N2920

IMB 156 Mini-ITX (6.7-in x 6.7-in) asrock Intel Apollo Lake E3940
N4200
N3350

IMB E156 Mini-ITX (6.7-in x 6.7-in) asrock Intel Apollo Lake E3940
N4200
N3350

IMB 157 Mini-ITX (6.7-in x 6.7-in) asrock Intel Apollo Lake E3940
N4200
N3350

IMB 154 Mini-ITX (6.7-in x 6.7-in) asrock Intel Braswell N3160
N3150

IMB 150 Mini-ITX (6.7-in x 6.7-in) asrock Intel Baytrail J1900
N2930
N2920

IMB 151 Mini-ITX (6.7-in x 6.7-in) asrock Intel Baytrail J1900
N2930
N2920

IMB 152 Mini-ITX (6.7-in x 6.7-in) asrock Intel Baytrail J1900
N2930
N2920

IMB 153 Mini-ITX (6.7-in x 6.7-in) asrock Intel Baytrail J1900
N2930
N2920

IMB 180 Mini-ITX (6.7-in x 6.7-in) asrock QM87 Intel Core i7-4930MQ
Intel Core i7-4702MQ
Intel Core i5-4330M
Intel Core i5-4200M
Intel Core i3-

IMB 182 Mini-ITX (6.7-in x 6.7-in) asrock QM87 Intel Core i7-4930MQ
Intel Core i7-4702MQ
Intel Core i5-4330M
Intel Core i5-4200M
Intel Core i3-

IMB 170 Mini-ITX (6.7-in x 6.7-in) asrock QM77 Intel Core i7-3610QE
Intel Core i5-3610ME
Intel Core i3-3120ME
Intel Core i7-2710QE
Intel Core i
