FS-11160
1U industrial rackmount platform for mini-itx applications
  • External HDD trays for mini-itx motherboards, both internal & external hot-sawppable storage capacities
  • Dual PCI expansion slots enabled; Supoprts up to 4 x SATA drive trays & 2 x IDE/SATA brackets.
Product Introduction

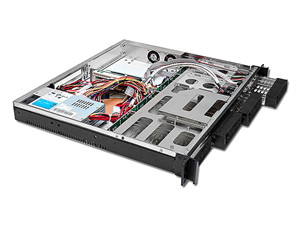

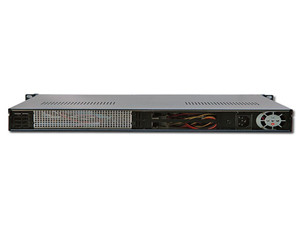

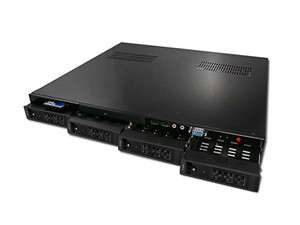

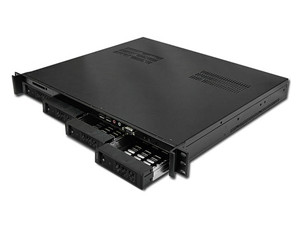

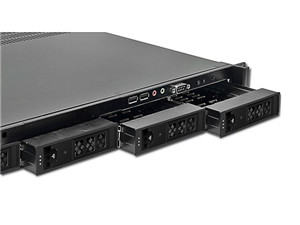

FS-11160 is a unique designs 1U chassis support 4 x 3.5" HDD Hot Swapple Drive Bays, 1 x slim optical drive and 2 x rear expansion slot. Also featured front RS232 mounting port and front accessible CF slot.

Model NumberFS-11160
RoHS Compliance VersionYes
Standard Drive Bays Internal Drive Bay : 2 x 2.5" IDE/SATA HDD

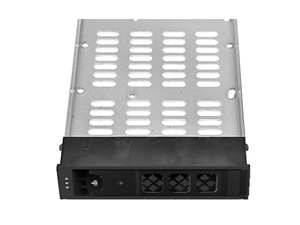

Hot Swappable Drive Bay: 4 x 3.5" HDD Tray (Front)
Optical Drive Bay: 1 (Slim)
Form Factor:1U
Mother Board:Mini-ITX
Material Heavy duty cold-rolled steel
FinishBlack wet paint textured coat
ColorBlack
Weight23
Front LED Indicator 1 x Activity; 1 x Power
Front USB Port2
Front Power Switch1
Front Audio In/Out1
Memory Height Accepts standard size
Expansion Slot2 x PCI
Compact Flash Slot1 x CF Cutoff (Front)
Extra Mounting Port1 x RS232
Cooling System:2 x 40mm fan
I/O Shield 2 x Universal I/O
Power SupplyFlex ATX 250W/300W/400W
Dimensions (WxHxD)19.00" x 1.73" x 16.06"
482.6 mm x 43.9 mm x 407.9 mm
