FS-11200

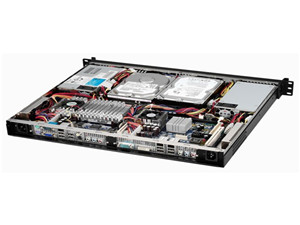

1U Rackmount server chassis with two Mini-ITX systems
  • Compatible with 2 x Mini-ITX motherboards for maximum utilization for business
  • Easy integration; Front accessible connectors
  • Both internal & external storage capacity
Product Introduction
FS-11200 support dual mini-ITX system in a single 1U chassis.Also included 2 x front RS-232 mounting port and front accessible CF card slot.Flex ATX power supply also support.

Model NumberFS-11200
RoHS Compliance VersionYes
Standard Drive Bays Internal Drive Bay : 2 x 3.5"
Form Factor:1U
Mother Board:Mini-ITX
Material Heavy duty cold-rolled steel
FinishBlack wet paint textured coat
ColorBlack
Weight23
Mounting OptionOptional sliding rail, rear/center mount brackets
Front LED Indicator 1 x Activity; 1 x Power
Front USB Port4
Front Power Switch1
Memory Height Accepts standard size
Compact Flash Slot1 x CF Cutoff (Front)
Extra Mounting Port2 x RS232
Cooling System:2 x 40mm fan
I/O Shield 2 x Universal I/O
Power SupplyDC Solution or Flex ATX 250W/300W/400W
Dimensions (WxHxD)19.00" x 1.73" x 15.27"
482.6 mm x 43.9 mm x 387.9 mm
