FS-1140
1U chassis for 4 x Pico-ITX boards
1U chassis for 4 x Pico-ITX boards

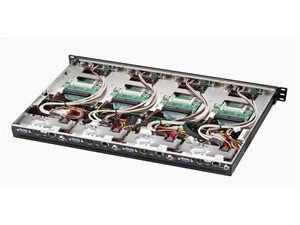

Need 4 x PICO systems in one single 1U chassis? FS-1140 is the perfect chassis for this application.FS-1140 feature 4 x 3.5" Hot Swapple drive Bays, 4 x 2.5" HDD/SSD internal drive bays and 8 x front USB2.0 port. Rear I/O opening pre-cut for PICO-ITX P720/P380/P840
**Motherboard and system components are not included, please contact our sales for system intergration inquiries**
Features
- 1U industrial rackmount platform accepting 4 x Pico-ITX? motherboard
- Front accessible connectors with 4 USB serial ports & 4 x Hot-swap HDD trays
| Product Specifications | |
| Model Number | FS-1140 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 4 x 2.5" HDD (When CF card readers are not install... Hot Swappable Drive Bay: 4 x 3.5" HDD Tray (Front) |
| Form Factor: | 1U |
| Motherboard Size: | Pico-ITX |
| Material | Heavy duty cold-rolled steel |
| Finish | Anodized finish |
| Color | Black |
| Weight | 10 |
| Front LED Indicator | 4 x Activity; 4 x Power (1/system) |
| Front USB Port | 8 (2x4) |
| Front Power Switch | 1 |
| Memory Height | Accepts standard size |
| Compact Flash Slot | 4 x Internal Reader (when Internal 2.5" HDD not in... |
| Cooling System: | 2 x 40mm fan |
| I/O Shield | Special I/O for Pico-ITX P720/P380/P840 |
| Dimensions (WxHxD) | 19.00" x 1.73" x 12.52" 482.6 mm x 43.9 mm x 318.0 mm |
