FS-1146
1U Industrial Rackmount Dual-PCI slots
  • 1U industrial rackmount platform that accepts mini-itx form factor motherboard
  • Front accessible: 1 x Serial port, 1 x Power, 2 x USB 2.0 ports
  • Dual PCI expansion slot





Product Introduction

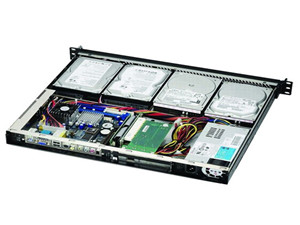

FS-1146 is a unique designs 1U chassis support 4 x 3.5" HDD internal drive bays.Feature 1 x front access serial port opening, 1 x Front CF card slot and dual rear PCI expansion slot.

Model NumberFS-1146
RoHS Compliance VersionYes
Standard Drive Bays Internal Drive Bay : 4 x 3.5" / 2.5"
Optical Drive Bay: 1 (Slim)
Form Factor:1U
Mother Board:Mini-ITX
Material Heavy duty cold-rolled steel
FinishBlack wet paint textured coat
ColorBlack
Weight20
Mounting OptionOptional sliding rail, rear/center mount brackets
Front LED Indicator 1 x Activity; 1 x Power
Front USB Port2
Front Power Switch1
Memory Height Accepts standard size
Expansion Slot2 x PCI

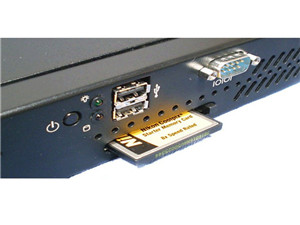

Compact Flash Slot1 x CF Cutoff (Front)
Expansion Slot NotesPCI card length allowance 7" x 4.2" (L x H)
I/O Shield 2 x Universal I/O
Power SupplyDC Solution or Flex ATX 250W/300W/400W
External Adapter InputAC 100V - 240V
Dimensions (WxHxD)19.00" x 1.73" x 15.27"
482.6 mm x 43.9 mm x 387.9 mm
