FS-12440
2U Rackmount chassis for ATX systems
2U Rackmount chassis for ATX systems

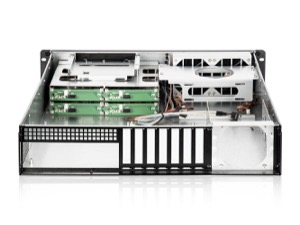

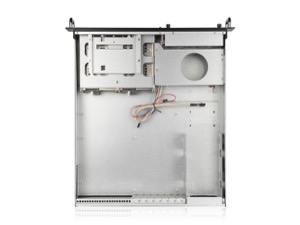

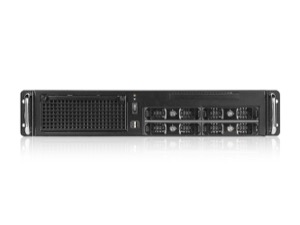

FS-12440 is a 2u rackmount chassis featured 4 x hot swappable 3.5" HDD, front accessible fan filter. Support slim optical drive, 1 x 2.5" and 2 x 3.5" HDD. Also support ATX motherboard, 7 x low profile expansion slots and 2U form factor power supply.
**Motherboard and system components are not included, please contact our sales for system intergration inquiries**
Features
- 2U industrial rackmount platform for Baby-ATX motherboards
- Supports: 4 x hot-swap, 7 x low profile expansion
- Excellent cooling system with 2 x 80mm front fan
| Product Specifications | |
| Model Number | FS-12440 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 1 x 2.5" and 2 x 3.5" HDD Hot Swappable Drive Bay: 4 x 3.5" HDD Tray (Front) Optical Drive Bay: 1 (Slim) |
| Form Factor: | 2U |
| Motherboard Size: | ATX |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 30 |
| Mounting Option | Optional Sliding rails |
| Front LED Indicator | 1 x Activity; 1 x Power |
| Front USB Port | 2 |
| Front Power Switch | 1 |
| Memory Height | Accepts standard size |
| Expansion Slot | 7 x Low Profile |
| Cooling System: | 2 x 80mm fan |
| I/O Shield | Standard I/O |
| Supported PSU Type | 2U Power Supply |
| Dimensions (WxHxD) | 19.00" x 3.46" x 21.18" 482.6 mm x 87.9 mm x 538.0 mm |
