FS-12925
2U Rackmount chassis for PICMG SBC systems
2U Rackmount chassis for PICMG SBC systems

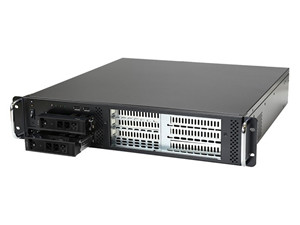

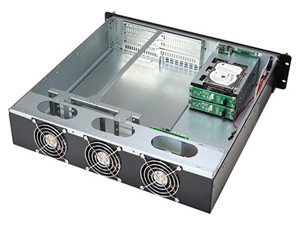

FS-12925 is a unique 2u rackmount chassis support PICMG SBC system. Featured 2 x hotswappable 3.5" HDD and 3 x rear mount 8cm fan for maximum cooling.
**Motherboard and system components are not included, please contact our sales for system intergration inquiries**
Features
| Product Specifications | |
| Model Number | FS-12925 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Hot Swappable Drive Bay: 2 x 3.5"HDD |
| Form Factor: | 2U |
| Motherboard Size: | Mini-ITX |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint with texture coat |
| Color | Black. Customizable colour |
| Front LED Indicator | 2 x disk activity (Orange light) ; 2 x power on (Blue light) |
| Front USB Port | 2 |
| Front Power Switch | 1 |
| Memory Height | Accept standard size |
| Expansion Slot | 6 |
| Cooling System: | 8cm fan x 3 (at back panel) |
| DC Jack | 1 |
| Supported PSU Type | Flex ATX |
| Dimensions (WxHxD) | 19.00" x 3.46" x 18.10" 482.6 mm x 87.9 mm x 459.7 mm |
