FS-13340
3U Rackmount chassis for Micro-ATX systems
3U Rackmount chassis for Micro-ATX systems

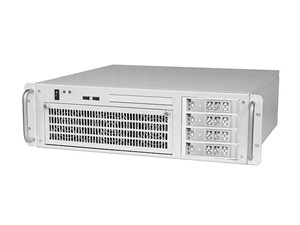

FS-13340 is a 3u rackmount chassis support MATX System. Featured 4 x hot swappable 3.5" , 3 x front mounted 80mm fan with front accessible fan filter plus 2 x 60mm rear mounted fan for maximum cooling. Support slim otpical drive, 3 x 3.5" HDD, and PS II ATX power supply.
**Motherboard and system components are not included, please contact our sales for system intergration inquiries**
Features
- 3U rackmount server chassis designed for Micro-ATX boards
- Supports: 4 x expansion slots, 4 x SATA2 drive trays
- DC cooling fan, Steel construction for industrial application
| Product Specifications | |
| Model Number | FS-13340 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 3 x 3.5" HDD Hot Swappable Drive Bay: 4 x 3.5" HDD Tray (Front) Optical Drive Bay: 1 (Slim) |
| Form Factor: | 3U |
| Motherboard Size: | Micro-ATX |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 30 |
| Mounting Option | Optional Sliding rails |
| Front LED Indicator | 1 x Activity; 1 x Power |
| Front USB Port | 2 |
| Front Power Switch | 1 |
| Memory Height | Accepts standard size |
| Expansion Slot | 4 x PCI |
| Cooling System: | 2 x 60mm and 3 x 80mm fan |
| I/O Shield | Standard I/O |
| Supported PSU Type | PSII |
| Dimensions (WxHxD) | 19.00" x 3.46" x 16.63" 482.6 mm x 87.9 mm x 422.4 mm |
