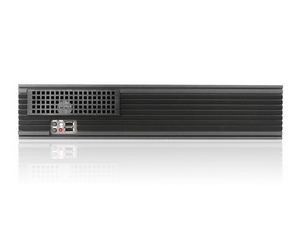

D-213-MATX-DT
2U Compact Server/Desktop microATX Chassis

Industrial compact chassis with 16" depth
Supports standard ATX power supplies
2x front access USB 2.0 ports
Supports 4x low-profile add-on cards
The most economic 2U chassis with one 5.25" bay

Product Introduction
D-213-MATX is a reliable and stable 2U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 low profile add-on cards. This chassis is only 16" deep and has optional two intake 80mm cooling fans at front for air ventilation. In addition, D-213-MATX supports a standard ATX PS2 power supply to meet regular server system applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	D-213-MATX-DT
RoHS Compliance	Yes
Form factor	2 U
Standard Drive Bays	3.5" Drive (internal): 2 5.25" Drives: 1
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	PS2
Expansion Slots	4 (Low profile)
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	Zinc-Coated Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 2.0
Motherboard Size	9.6 x 9.6 (microATX, mini-ITX)
Optional Fan:	80mmx2
Dimensions (WxHxD)	16.85" x 3.50" x 15.56" 428.0 mm x 88.9 mm x 395.2 mm

Download

Data Sheet (PDF)

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Single
	TC-350PD3	Special Order - 350W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
	TC-500PD8B	500W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-700PD8B	700W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
