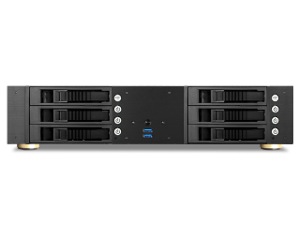

D-260HB-DT
2U Compact 6x 3.5" Bay Hotswap microATX Desktop Chassis
  • 6 hotswappable 3.5" bays for HDD quick swap
  • Compatible with 2.5" HDDs/SSDs
  • Supports standard ATX power supplies
  • Sleek aluminum front w/ various color options for HDD handles
  • USB 3.0 ports in front for easy access
  • Supports 6.0 Gb/s hard drives
  • Rackmount or desktop convertible
Product Introduction
The D-230HB-DT, D-260HB-DT, D-340HB-DT, D-350HB-DT, D-380HB-DT, and D-3100HB-DT series are designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation. With storage capacity up to 8 TB per each bay, the hot-swap drive cage maximizes data storage and backup functionality at the same time. These series are ideal platform for HTPC build using popular AMD and Intel processors.

Model NumberD-260HB-DT
RoHS ComplianceYes
Form factor2 U
Standard Drive Bays 2.5" Drive (internal): 2
Hotswap 3.5": 6
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower
Expansion Slots4 (Low profile)
Material of Front BezelAluminum
Material of HandleAluminum
Material of Main ChassisSGCC 0.8mm
Color of Main ChassisBlack
Front Connector2x USB 3.0
Motherboard Size9.6 x 9.6 (microATX, mini-ITX)
Cooling Fan1x80mm
Ordering Information
(Part Number)
Black HDD Handle:D-260HB-DT
Blue HDD Handle:D-260HB-DT-BLUE
Red HDD Handle:D-260HB-DT-RED
Silver HDD Handle:D-260HB-DT-SILVER
Dimensions (WxHxD)18.98" x 3.48" x 19.30"
482.1 mm x 88.4 mm x 490.2 mm


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Single
TC-400PD8Build-to-Order - 400W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-500PD8500W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-500PD8B500W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-700PD8B700W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
