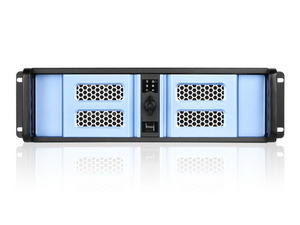

D-300SE
3U Compact Stylish Rackmount Chassis
  • Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
  • Front Access USB2.0 x2
  • 60mm x1 Cooling Fan
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Optional Aluminum Chassis
Product Introduction
The 3U industrial rackmount chassis D Storm D-300SE. Optional BPU series enable hot-swappable storage and RAID configuration. D-300SE backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance.

Model NumberD-300SE
RoHS ComplianceYes
Form factor3 U
Standard Drive Bays 3.5" Drives: 2
3.5" Drive (internal): 1
5.25" Drives: 4
IndicatorsPower, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
SwitchesPower, Reset
Supported PSU Type1U, 2U
Expansion Slots7
SecurityFront Bezel Key Lock
Material of Front BezelAluminum alloy
Material of HandleSECC Zinc-Coated Steel
Material of Main Chassis1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front BezelBlue
Color of Main ChassisBlack
Front Connector2x USB 3.0
Air FilterRemovable & Washable
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan1x60mm
Optional Fan:60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required)
Ordering Information
(Part Number)
Blue Bezel:D-300SE
Black Bezel:D-300SE-BK
Red Bezel:D-300SE-RD
Silver Bezel:D-300SE-SL
Dimensions (WxHxD)19.00" x 5.25" x 20.80"
482.6 mm x 133.3 mm x 528.3 mm
Notes- supports power supply length up to 250mm when hotswap cages installed in the front.


FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
BPU-124V2-SSBuild-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SASpecial Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-230SATA2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-2535-SIBuild-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
BTC-300-WALLBuild-to-Order - D-300 Wallmount Brackets
DD-FAN60-Q60mm Liquid State Bearing Fan
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD2.52.5" to 3.5" Hard Drive Mounting Bracket
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD25P3.5" Drive Bay Bracket for 2x 2.5" SSDs
V-1.3B-M4SA1U60
RP-HUB-SAUF3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
RP-READER35Build-to-Order - All-in-one USB 2.0 Card Reader
T-25HD-SIBuild-to-Order - 2.5" SATA HDD SSD Slot Carrier
T5F-SSEOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T5-SABuild-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-7-SARugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
TC-ISF088 Ports Fan Sensor Board
TC-ISTORM72x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
TC-ISTORM83.5" to 5.25" Hard Drive Cooling Heat Sink
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
BPN-DE230SSTrayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
DD-300-SE-BLACK3U Black Bezel for SE series
DD-300-SE-BLUE3U Blue Bezel for SE series
DD-300-SE-RED3U Red Bezel for SE series
DD-300-SE-SILVER3U Silver Bezel for SE series
BPN-DE110SSTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
BPN-2535DE-SA3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-G35-SSIndustrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPN-DE110SS-WBTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-DE230SS-WBTrayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-124K-SATrayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K35T-SATrayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-35K25-SABuild-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Redundant
IX-550R2UPD8550W 2U High Efficiency Redundant Power SupplyBRT-0203-R2 (1)
BRT-0203-4R (1)
Single
IS-2U40PD8Build-to-Order - 2U 400W 80 Plus High Efficiency Power SupplyBRT-0003-RR-S6 (1)
IS-2U46PD82U 460W 80 Plus High Efficiency Power SupplyBRT-0003-RR-S6 (1)
IS-2U50PD8Build-to-Order - 2U 500W 80 Plus High Efficiency Power SupplyBRT-0003-RR-S6 (1)
TC-2U50PD8EOL - 500W 2U High Efficiency Switching Power SupplyBRT-0303-1 (1)
BRT-0003-RR (1)
TC-2U60PD8EOL - 600W 2U High Efficiency Switching Power SupplyBRT-0303-1 (1)
BRT-0003-RR (1)
TC-2U70PD8700W 2U High Efficiency Switching Power SupplyBRT-0303-1 (1)
BRT-0003-RR (1)

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS

P8B-E(4L)ATXASUS

P8B-XATXASUS

P6T WS ProfessionalATXASUS

P6X58-E WSATXASUS

P8B WSATXASUS

P8C WSATXASUS

P8P67 WS REVOLUTIONATXASUS

P8Z77 WSATXASUS

Z9PA-U8ATXASUS

P8B-MXMicro-ATXASUS

C216 WSATXASRock

E3C204ATXASRock

E3C204-4LATXASRock

E3C204-V+ATXASRock

E3C204-V4LATXASRock

H77WS-DLATXASRock

Z77 WSATXASRock

AD2550R/U3S3Mini ITXASRock

S5512ATXTYAN

S5510MicroATXTYAN

S5515MicroATXTYAN

GA-6UASV3microATXGIGABYTE

GA-6UASL3microATXGIGABYTE

GA-6PXSV4ATXGIGABYTE

GA-6PXSV1ATXGIGABYTE

GA-6PXSV2ATXGIGABYTE

GA-6PXSV3ATXGIGABYTE


Chassis Combo

Model #HDD Tray Front Bezel
Color
Hotswap
3.5" Bay
Hotswap
2.5" Bay
Ext
5.25"
Ext
3.5"
HDD Type
D300SE-4DE1BK-SLTraylessSilver40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1BK-SLTraylessSilver30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1BK-SLTraylessSilver20223.5" SAS I/II & SATA I/II/III
D300SE-DE1BK-SLTraylessSilver10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1SL-SLTraylessSilver40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1SL-SLTraylessSilver30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1SL-SLTraylessSilver20223.5" SAS I/II & SATA I/II/III
D300SE-DE1SL-SLTraylessSilver10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1BL-SLTraylessSilver40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1BL-SLTraylessSilver30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1BL-SLTraylessSilver20223.5" SAS I/II & SATA I/II/III
D300SE-DE1BL-SLTraylessSilver10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1RD-SLTraylessSilver40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1RD-SLTraylessSilver30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1RD-SLTraylessSilver20223.5" SAS I/II & SATA I/II/III
D300SE-DE1RD-SLTraylessSilver10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1BK-RDTraylessRed40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1BK-RDTraylessRed30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1BK-RDTraylessRed20223.5" SAS I/II & SATA I/II/III
D300SE-DE1BK-RDTraylessRed10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1SL-RDTraylessRed40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1SL-RDTraylessRed30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1SL-RDTraylessRed20223.5" SAS I/II & SATA I/II/III
D300SE-DE1SL-RDTraylessRed10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1BL-RDTraylessRed40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1BL-RDTraylessRed30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1BL-RDTraylessRed20223.5" SAS I/II & SATA I/II/III
D300SE-DE1BL-RDTraylessRed10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1RD-RDTraylessRed40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1RD-RDTraylessRed30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1RD-RDTraylessRed20223.5" SAS I/II & SATA I/II/III
D300SE-DE1RD-RDTraylessRed10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1BK-BKTraylessBlack40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1BK-BKTraylessBlack30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1BK-BKTraylessBlack20223.5" SAS I/II & SATA I/II/III
D300SE-DE1BK-BKTraylessBlack10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1SL-BKTraylessBlack40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1SL-BKTraylessBlack30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1SL-BKTraylessBlack20223.5" SAS I/II & SATA I/II/III
D300SE-DE1SL-BKTraylessBlack10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1BL-BKTraylessBlack40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1BL-BKTraylessBlack30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1BL-BKTraylessBlack20223.5" SAS I/II & SATA I/II/III
D300SE-DE1BL-BKTraylessBlack10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1RD-BKTraylessBlack40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1RD-BKTraylessBlack30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1RD-BKTraylessBlack20223.5" SAS I/II & SATA I/II/III
D300SE-DE1RD-BKTraylessBlack10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1BKTraylessBlue40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1BKTraylessBlue30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1BKTraylessBlue20223.5" SAS I/II & SATA I/II/III
D300SE-DE1BKTraylessBlue10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1SLTraylessBlue40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1SLTraylessBlue30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1SLTraylessBlue20223.5" SAS I/II & SATA I/II/III
D300SE-DE1SLTraylessBlue10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1BLTraylessBlue40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1BLTraylessBlue30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1BLTraylessBlue20223.5" SAS I/II & SATA I/II/III
D300SE-DE1BLTraylessBlue10323.5" SAS I/II & SATA I/II/III
D300SE-4DE1RDTraylessBlue40023.5" SAS I/II & SATA I/II/III
D300SE-3DE1RDTraylessBlue30123.5" SAS I/II & SATA I/II/III
D300SE-2DE1RDTraylessBlue20223.5" SAS I/II & SATA I/II/III
D300SE-DE1RDTraylessBlue10323.5" SAS I/II & SATA I/II/III
D300SE-25M4-SLTraylessSilver04402.5" SATA I/II
D300SE-25M2-SLTraylessSilver02412.5" SATA I/II
D300SE-25M4-RDTraylessRed04402.5" SATA I/II
D300SE-25M2-RDTraylessRed02412.5" SATA I/II
D300SE-25M4-BKTraylessBlack04402.5" SATA I/II
D300SE-25M2-BKTraylessBlack02412.5" SATA I/II
D300SE-25M4TraylessBlue04402.5" SATA I/II
D300SE-25M2TraylessBlue02412.5" SATA I/II
D300SE-DE6BK-SLTraylessSilver60023.5" SAS I/II & SATA I/II/III
D300SE-DE6SL-SLTraylessSilver60023.5" SAS I/II & SATA I/II/III
D300SE-DE6BL-SLTraylessSilver60023.5" SAS I/II & SATA I/II/III
D300SE-DE3SL-SLTraylessSilver30223.5" SAS I/II & SATA I/II/III
D300SE-DE3BK-SLTraylessSilver30223.5" SAS I/II & SATA I/II/III
D300SE-DE6RD-SLTraylessSilver60023.5" SAS I/II & SATA I/II/III
D300SE-DE3BL-SLTraylessSilver30223.5" SAS I/II & SATA I/II/III
D300SE-DE3RD-SLTraylessSilver30223.5" SAS I/II & SATA I/II/III
D300SE-DE6BK-RDTraylessRed60023.5" SAS I/II & SATA I/II/III
D300SE-DE6SL-RDTraylessRed60023.5" SAS I/II & SATA I/II/III
D300SE-DE6BL-RDTraylessRed60023.5" SAS I/II & SATA I/II/III
D300SE-DE6RD-RDTraylessRed60023.5" SAS I/II & SATA I/II/III
D300SE-DE3BL-RDTraylessRed30223.5" SAS I/II & SATA I/II/III
D300SE-DE3SL-RDTraylessRed30223.5" SAS I/II & SATA I/II/III
D300SE-DE3BK-RDTraylessRed30223.5" SAS I/II & SATA I/II/III
D300SE-DE3RD-RDTraylessRed30223.5" SAS I/II & SATA I/II/III
D300SE-DE6BK-BKTraylessBlack60023.5" SAS I/II & SATA I/II/III
D300SE-DE6SL-BKTraylessBlack60023.5" SAS I/II & SATA I/II/III
D300SE-DE6BL-BKTraylessBlack60023.5" SAS I/II & SATA I/II/III
D300SE-DE6RD-BKTraylessBlack60023.5" SAS I/II & SATA I/II/III
D300SE-DE3BK-BKTraylessBlack30223.5" SAS I/II & SATA I/II/III
D300SE-DE3SL-BKTraylessBlack30223.5" SAS I/II & SATA I/II/III
D300SE-DE6BKTraylessBlue60023.5" SAS I/II & SATA I/II/III
D300SE-DE3RD-BKTraylessBlack30223.5" SAS I/II & SATA I/II/III
D300SE-DE3BL-BKTraylessBlack30223.5" SAS I/II & SATA I/II/III
D300SE-DE6SLTraylessBlue60023.5" SAS I/II & SATA I/II/III
D300SE-DE6BLTraylessBlue60023.5" SAS I/II & SATA I/II/III
D300SE-DE6RDTraylessBlue60023.5" SAS I/II & SATA I/II/III
D300SE-DE3BKTraylessBlue30223.5" SAS I/II & SATA I/II/III
D300SE-DE3SLTraylessBlue30223.5" SAS I/II & SATA I/II/III
D300SE-DE3BLTraylessBlue30223.5" SAS I/II & SATA I/II/III
D300SE-DE3RDTraylessBlue30223.5" SAS I/II & SATA I/II/III
D300SE-4B126-SLTraySilver024022.5" SATA I/II/III
D300SE-3B126-SLTraySilver018122.5" SATA I/II/III
D300SE-2B126-SLTraySilver012222.5" SATA I/II/III
D300SE-3B124-SLTraySilver012122.5" SAS I/II & SATA I/II/III
D300SE-4B124-SLTraySilver016022.5" SAS I/II & SATA I/II/III
D300SE-B126-SLTraySilver06322.5" SATA I/II/III
D300SE-2B124-SLTraySilver08222.5" SAS I/II & SATA I/II/III
D300SE-B124-SLTraySilver04322.5" SAS I/II & SATA I/II/III
D300SE-B6BL-SLTraySilver60023.5" SAS I/II & SATA I/II/III
D300SE-B6SL-SLTraySilver60023.5" SAS I/II & SATA I/II/III
D300SE-B6BK-SLTraySilver60023.5" SAS I/II & SATA I/II/III
D300SE-B3BK-SLTraySilver30223.5" SAS I/II & SATA I/II/III
D300SE-B6PL-SLTraySilver60023.5" SAS I/II & SATA I/II/III
D300SE-B6RD-SLTraySilver60023.5" SAS I/II & SATA I/II/III
D300SE-B3BL-SLTraySilver30223.5" SAS I/II & SATA I/II/III
D300SE-B3SL-SLTraySilver30223.5" SAS I/II & SATA I/II/III
D300SE-B3RD-SLTraySilver30223.5" SAS I/II & SATA I/II/III
D300SE-B3PL-SLTraySilver30223.5" SAS I/II & SATA I/II/III
D300SE-4M1BK-SLTraySilver40023.5" SAS I/II & SATA I/II/III
D300SE-3M1BK-SLTraySilver30123.5" SAS I/II & SATA I/II/III
D300SE-2M1BK-SLTraySilver20223.5" SAS I/II & SATA I/II/III
D300SE-M1BK-SLTraySilver10323.5" SAS I/II & SATA I/II/III
D300SE-4M1SL-SLTraySilver40023.5" SAS I/II & SATA I/II/III
D300SE-3M1SL-SLTraySilver30123.5" SAS I/II & SATA I/II/III
D300SE-2M1SL-SLTraySilver20223.5" SAS I/II & SATA I/II/III
D300SE-M1SL-SLTraySilver10323.5" SAS I/II & SATA I/II/III
D300SE-4M1BL-SLTraySilver40023.5" SAS I/II & SATA I/II/III
D300SE-3M1BL-SLTraySilver30123.5" SAS I/II & SATA I/II/III
D300SE-2M1BL-SLTraySilver20223.5" SAS I/II & SATA I/II/III
D300SE-M1BL-SLTraySilver10323.5" SAS I/II & SATA I/II/III
D300SE-2M1RD-SLTraySilver20223.5" SAS I/II & SATA I/II/III
D300SE-3M1RD-SLTraySilver30123.5" SAS I/II & SATA I/II/III
D300SE-4M1RD-SLTraySilver40023.5" SAS I/II & SATA I/II/III
D300SE-3M1PL-SLTraySilver30123.5" SAS I/II & SATA I/II/III
D300SE-4M1PL-SLTraySilver40023.5" SAS I/II & SATA I/II/III
D300SE-M1RD-SLTraySilver10323.5" SAS I/II & SATA I/II/III
D300SE-2M1PL-SLTraySilver20223.5" SAS I/II & SATA I/II/III
D300SE-M1PL-SLTraySilver10323.5" SAS I/II & SATA I/II/III
D300SE-4T7-SLTraySilver40023.5" SAS I/II & SATA I/II/III
D300SE-3T7-SLTraySilver30123.5" SAS I/II & SATA I/II/III
D300SE-2T7-SLTraySilver20223.5" SAS I/II & SATA I/II/III
D300SE-T7-SLTraySilver10323.5" SAS I/II & SATA I/II/III
D300SE-4T5F-SLTraylessSilver40023.5" SAS I/II & SATA I/II/III
D300SE-3T5F-SLTraylessSilver30123.5" SAS I/II & SATA I/II/III
D300SE-2T5F-SLTraylessSilver20223.5" SAS I/II & SATA I/II/III
D300SE-T5F-SLTraylessSilver10323.5" SAS I/II & SATA I/II/III
D300SE-4B126-RDTrayRed024022.5" SATA I/II/III
D300SE-3B126-RDTrayRed018122.5" SATA I/II/III
D300SE-2B126-RDTrayRed012222.5" SATA I/II/III
D300SE-B126-RDTrayRed06322.5" SATA I/II/III
D300SE-4B124-RDTrayRed016022.5" SAS I/II & SATA I/II/III
D300SE-3B124-RDTrayRed012122.5" SAS I/II & SATA I/II/III
D300SE-2B124-RDTrayRed08222.5" SAS I/II & SATA I/II/III
D300SE-B124-RDTrayRed04322.5" SAS I/II & SATA I/II/III
D300SE-B6BL-RDTrayRed60023.5" SAS I/II & SATA I/II/III
D300SE-B6SL-RDTrayRed60023.5" SAS I/II & SATA I/II/III
D300SE-B6BK-RDTrayRed60023.5" SAS I/II & SATA I/II/III
D300SE-B3BK-RDTrayRed30223.5" SAS I/II & SATA I/II/III
D300SE-B6PL-RDTrayRed60023.5" SAS I/II & SATA I/II/III
D300SE-B6RD-RDTrayRed60023.5" SAS I/II & SATA I/II/III
D300SE-B3SL-RDTrayRed30223.5" SAS I/II & SATA I/II/III
D300SE-B3BL-RDTrayRed30223.5" SAS I/II & SATA I/II/III
D300SE-B3RD-RDTrayRed30223.5" SAS I/II & SATA I/II/III
D300SE-B3PL-RDTrayRed30223.5" SAS I/II & SATA I/II/III
D300SE-4M1BK-RDTrayRed40023.5" SAS I/II & SATA I/II/III
D300SE-3M1BK-RDTrayRed30123.5" SAS I/II & SATA I/II/III
D300SE-2M1BK-RDTrayRed20223.5" SAS I/II & SATA I/II/III
D300SE-M1BK-RDTrayRed10323.5" SAS I/II & SATA I/II/III
D300SE-4M1SL-RDTrayRed40023.5" SAS I/II & SATA I/II/III
D300SE-3M1SL-RDTrayRed30123.5" SAS I/II & SATA I/II/III
D300SE-2M1SL-RDTrayRed20223.5" SAS I/II & SATA I/II/III
D300SE-M1SL-RDTrayRed10323.5" SAS I/II & SATA I/II/III
D300SE-4M1BL-RDTrayRed40023.5" SAS I/II & SATA I/II/III
D300SE-3M1BL-RDTrayRed30123.5" SAS I/II & SATA I/II/III
D300SE-2M1BL-RDTrayRed20223.5" SAS I/II & SATA I/II/III
D300SE-M1BL-RDTrayRed10323.5" SAS I/II & SATA I/II/III
D300SE-4M1RD-RDTrayRed40023.5" SAS I/II & SATA I/II/III
D300SE-3M1RD-RDTrayRed30123.5" SAS I/II & SATA I/II/III
D300SE-2M1RD-RDTrayRed20223.5" SAS I/II & SATA I/II/III
D300SE-M1RD-RDTrayRed10323.5" SAS I/II & SATA I/II/III
D300SE-4M1PL-RDTrayRed40023.5" SAS I/II & SATA I/II/III
D300SE-M1PL-RDTrayRed10323.5" SAS I/II & SATA I/II/III
D300SE-2M1PL-RDTrayRed20223.5" SAS I/II & SATA I/II/III
D300SE-3M1PL-RDTrayRed30123.5" SAS I/II & SATA I/II/III
D300SE-2T7-RDTrayRed20223.5" SAS I/II & SATA I/II/III
D300SE-3T7-RDTrayRed30123.5" SAS I/II & SATA I/II/III
D300SE-4T7-RDTrayRed40023.5" SAS I/II & SATA I/II/III
D300SE-T7-RDTrayRed10323.5" SAS I/II & SATA I/II/III
D300SE-4T5F-RDTraylessRed40023.5" SAS I/II & SATA I/II/III
D300SE-3T5F-RDTraylessRed30123.5" SAS I/II & SATA I/II/III
D300SE-2T5F-RDTraylessRed20223.5" SAS I/II & SATA I/II/III
D300SE-T5F-RDTraylessRed10323.5" SAS I/II & SATA I/II/III
D300SE-4B126-BKTrayBlack024022.5" SATA I/II/III
D300SE-3B126-BKTrayBlack018122.5" SATA I/II/III
D300SE-2B126-BKTrayBlack012222.5" SATA I/II/III
D300SE-B126-BKTrayBlack06322.5" SATA I/II/III
D300SE-4B124-BKTrayBlack016022.5" SAS I/II & SATA I/II/III
D300SE-3B124-BKTrayBlack012122.5" SAS I/II & SATA I/II/III
D300SE-2B124-BKTrayBlack08222.5" SAS I/II & SATA I/II/III
D300SE-B124-BKTrayBlack04322.5" SAS I/II & SATA I/II/III
D300SE-B6BK-BKTrayBlack60023.5" SAS I/II & SATA I/II/III
D300SE-B6SL-BKTrayBlack60023.5" SAS I/II & SATA I/II/III
D300SE-B6BL-BKTrayBlack60023.5" SAS I/II & SATA I/II/III
D300SE-B6RD-BKTrayBlack60023.5" SAS I/II & SATA I/II/III
D300SE-B6PL-BKTrayBlack60023.5" SAS I/II & SATA I/II/III
D300SE-B3BK-BKTrayBlack30223.5" SAS I/II & SATA I/II/III
D300SE-B3SL-BKTrayBlack30223.5" SAS I/II & SATA I/II/III
D300SE-B3BL-BKTrayBlack30223.5" SAS I/II & SATA I/II/III
D300SE-B3RD-BKTrayBlack30223.5" SAS I/II & SATA I/II/III
D300SE-B3PL-BKTrayBlack30223.5" SAS I/II & SATA I/II/III
D300SE-4M1BK-BKTrayBlack40023.5" SAS I/II & SATA I/II/III
D300SE-3M1BK-BKTrayBlack30123.5" SAS I/II & SATA I/II/III
D300SE-4M1SL-BKTrayBlack40023.5" SAS I/II & SATA I/II/III
D300SE-M1BK-BKTrayBlack10323.5" SAS I/II & SATA I/II/III
D300SE-2M1BK-BKTrayBlack20223.5" SAS I/II & SATA I/II/III
D300SE-M1SL-BKTrayBlack10323.5" SAS I/II & SATA I/II/III
D300SE-2M1SL-BKTrayBlack20223.5" SAS I/II & SATA I/II/III
D300SE-3M1SL-BKTrayBlack30123.5" SAS I/II & SATA I/II/III
D300SE-4M1BL-BKTrayBlack40023.5" SAS I/II & SATA I/II/III
D300SE-3M1BL-BKTrayBlack30123.5" SAS I/II & SATA I/II/III
D300SE-2M1BL-BKTrayBlack20223.5" SAS I/II & SATA I/II/III
D300SE-M1BL-BKTrayBlack10323.5" SAS I/II & SATA I/II/III
D300SE-4M1RD-BKTrayBlack40023.5" SAS I/II & SATA I/II/III
D300SE-3M1RD-BKTrayBlack30123.5" SAS I/II & SATA I/II/III
D300SE-2M1RD-BKTrayBlack20223.5" SAS I/II & SATA I/II/III
D300SE-M1RD-BKTrayBlack10323.5" SAS I/II & SATA I/II/III
D300SE-4M1PL-BKTrayBlack40023.5" SAS I/II & SATA I/II/III
D300SE-3M1PL-BKTrayBlack30123.5" SAS I/II & SATA I/II/III
D300SE-2M1PL-BKTrayBlack20223.5" SAS I/II & SATA I/II/III
D300SE-M1PL-BKTrayBlack10323.5" SAS I/II & SATA I/II/III
D300SE-4T7-BKTrayBlack40023.5" SAS I/II & SATA I/II/III
D300SE-3T7-BKTrayBlack30123.5" SAS I/II & SATA I/II/III
D300SE-2T7-BKTrayBlack20223.5" SAS I/II & SATA I/II/III
D300SE-T7-BKTrayBlack10323.5" SAS I/II & SATA I/II/III
D300SE-4T5F-BKTraylessBlack40023.5" SAS I/II & SATA I/II/III
D300SE-3T5F-BKTraylessBlack30123.5" SAS I/II & SATA I/II/III
D300SE-2T5F-BKTraylessBlack20223.5" SAS I/II & SATA I/II/III
D300SE-T5F-BKTraylessBlack10323.5" SAS I/II & SATA I/II/III
D300SE-4B126TrayBlue024022.5" SATA I/II/III
D300SE-3B126TrayBlue018122.5" SATA I/II/III
D300SE-2B126TrayBlue012222.5" SATA I/II/III
D300SE-B126TrayBlue06322.5" SATA I/II/III
D300SE-4B124TrayBlue016022.5" SAS I/II & SATA I/II/III
D300SE-3B124TrayBlue012122.5" SAS I/II & SATA I/II/III
D300SE-2B124TrayBlue08222.5" SAS I/II & SATA I/II/III
D300SE-B124TrayBlue04322.5" SAS I/II & SATA I/II/III
D300SE-B6BKTrayBlue60023.5" SAS I/II & SATA I/II/III
D300SE-B6RDTrayBlue60023.5" SAS I/II & SATA I/II/III
D300SE-B6BLTrayBlue60023.5" SAS I/II & SATA I/II/III
D300SE-B6SLTrayBlue60023.5" SAS I/II & SATA I/II/III
D300SE-B3SLTrayBlue30223.5" SAS I/II & SATA I/II/III
D300SE-B3BKTrayBlue30223.5" SAS I/II & SATA I/II/III
D300SE-B6PLTrayBlue60023.5" SAS I/II & SATA I/II/III
D300SE-B3RDTrayBlue30223.5" SAS I/II & SATA I/II/III
D300SE-B3BLTrayBlue30223.5" SAS I/II & SATA I/II/III
D300SE-3M1BKTrayBlue30123.5" SAS I/II & SATA I/II/III
D300SE-4M1BKTrayBlue40023.5" SAS I/II & SATA I/II/III
D300SE-B3PLTrayBlue30223.5" SAS I/II & SATA I/II/III
D300SE-2M1BKTrayBlue20223.5" SAS I/II & SATA I/II/III
D300SE-M1BKTrayBlue10323.5" SAS I/II & SATA I/II/III
D300SE-4M1SLTrayBlue40023.5" SAS I/II & SATA I/II/III
D300SE-3M1SLTrayBlue30123.5" SAS I/II & SATA I/II/III
D300SE-2M1SLTrayBlue20223.5" SAS I/II & SATA I/II/III
D300SE-M1SLTrayBlue10323.5" SAS I/II & SATA I/II/III
D300SE-4M1BLTrayBlue40023.5" SAS I/II & SATA I/II/III
D300SE-3M1BLTrayBlue30123.5" SAS I/II & SATA I/II/III
D300SE-2M1BLTrayBlue20223.5" SAS I/II & SATA I/II/III
D300SE-M1BLTrayBlue10323.5" SAS I/II & SATA I/II/III
D300SE-4M1RDTrayBlue40023.5" SAS I/II & SATA I/II/III
D300SE-3M1RDTrayBlue30123.5" SAS I/II & SATA I/II/III
D300SE-2M1RDTrayBlue20223.5" SAS I/II & SATA I/II/III
D300SE-3M1PLTrayBlue30123.5" SAS I/II & SATA I/II/III
D300SE-4M1PLTrayBlue40023.5" SAS I/II & SATA I/II/III
D300SE-M1RDTrayBlue10323.5" SAS I/II & SATA I/II/III
D300SE-2M1PLTrayBlue20223.5" SAS I/II & SATA I/II/III
D300SE-M1PLTrayBlue10323.5" SAS I/II & SATA I/II/III
D300SE-4T7TrayBlue40023.5" SAS I/II & SATA I/II/III
D300SE-3T7TrayBlue30123.5" SAS I/II & SATA I/II/III
D300SE-2T7TrayBlue20223.5" SAS I/II & SATA I/II/III
D300SE-3T5FTraylessBlue30123.5" SAS I/II & SATA I/II/III
D300SE-4T5FTraylessBlue40023.5" SAS I/II & SATA I/II/III
D300SE-T7TrayBlue10323.5" SAS I/II & SATA I/II/III
D300SE-T5FTraylessBlue10323.5" SAS I/II & SATA I/II/III
D300SE-2T5FTraylessBlue20223.5" SAS I/II & SATA I/II/III
D-300SE-SLSilver0042
D-300SE-RDRed0042
D-300SE-BKBlack0042

Featured Videos

Description:
How to install IS-400R2UP Power Supply into a 3U chassis

Products:
D-300,D-300SE,D-300SEA,D-300L,D-300LSE,D2-300


Description:
How to install IS-1U40PD8 Power Supply into D-300 Chassis

Products:
D-300,D-300SE,D-300SEA,D-300L,D-300LSE,D2-300,D-300A,D-300ASE


Description:
How to install TC-2U70PD8 Power Supply into D-300 Chassis

Products:
D-300,D-300SE,D-300SEA,D-300L,D-300LSE,D2-300,D-300A,D-300ASE
