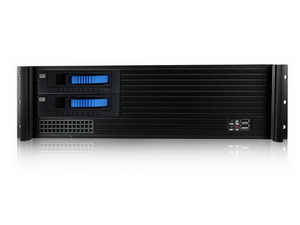

Industrial Chassis | iStarUSA Products | D-313SE-MATX-2M1 - 3U Compact Hotswap 3.5" HDD Rackmount Chassis ATX PSU Compatible

D-313SE-MATX-2M1
3U Compact Hotswap 3.5" HDD Rackmount Chassis ATX PSU Compatible

Support 4 x Full Height Add-on Cards
Support ATX PS2 Power Supply
Power and Reset Switch
Power and HDD LED
Support 2x3.5" Hotswap Drives
Supports Front Access USB2.0 x2

Product Introduction
D-313SE-MATX-2M1 is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 16" deep and has optional 120mm and 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-313SE-MATX-2M1 supports a standard ATX power supply to meet regular server system applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	D-313SE-MATX-2M1
RoHS Compliance	Yes
Form factor	3 U
Standard Drive Bays	3.5" Drives: 1 3.5" Drive (internal): 4 Hotswap 3.5": 2
Hotswap HDD Type:	3.5" SAS I/II & SATA I/II/III
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	PS2
Expansion Slots	4 (full height & up to 165mm deep with hdds installed)
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	Zinc-Coated Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 2.0
Motherboard Size	9.6 x 9.6 (microATX, mini-ITX)
Optional Fan:	120mm x1, 80mm x1, 60mm x2
Ordering Information (Part Number)	Black HDD Tray Handle:D313SEMATX-2M1BK Blue HDD Tray Handle:D313SEMATX-2M1BL Red HDD Tray Handle:D313SEMATX-2M1RD Silver HDD Tray Handle:D313SEMATX-2M1SL Lockable HDD Tray Handle:D313SEMATX-2M1PL
Dimensions (WxHxD)	19.00" x 5.25" x 16.86" 482.6 mm x 133.3 mm x 428.2 mm
Notes	- mounting a hard drive in the external 3.5" bay will need to detach the 3.5" bay cover.

Download

Data Sheet (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-2535F-SI
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HUB-SAUF	3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
	RP-READER35	Build-to-Order - All-in-one USB 2.0 Card Reader
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Single
	TC-350PD3	Special Order - 350W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
	TC-400PD8	Build-to-Order - 400W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-500PD8	500W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-500PD8B	500W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-700PD8B	700W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
