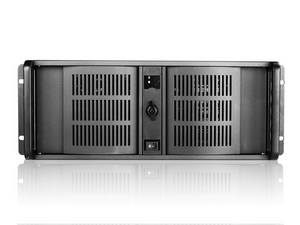

Industrial Chassis | iStarUSA Products | D-400-JB - Build-to-Order - 4U Disk Array JBOD Storage Rackmount Chassis

D-400-JB
Build-to-Order - 4U Disk Array JBOD Storage Rackmount Chassis

Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
Custom Backplane Cutouts
80mm x2, 120mm x1 Cooling Fan
Removable Air Filter
Power and HDD LED
Power and Alarm Reset Switch
RAID AT Power Pupply Option

Product Introduction
iStarUSA 4U rackmount disk array storage chassis D Storm D-400-JB. Combine with BPU or T Series enable hot-swappable storage capability. It has total storage capacity up to 8x 5.25" drives for JBOD and RAID configuration. Ball bearing 120mm and 80mm fan offer long lasting and enhanced thermal cooling solution. D-400-JB provide maximum storage and performance to high density storage system.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	D-400-JB
RoHS Compliance	Yes
Form factor	4 U
Standard Drive Bays	5.25" Drives: 8
Indicators	Power, HDD
Switches	Power ON/OFF, System & Alarm Reset
Expansion Slots	7 (centronics)
Security	Front Bezel
Material of Front Bezel	Aluminum alloy
Material of Handle	1.2mm SECC Zinc-Coated Steel
Material of Main Chassis	1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel	Black
Color of Main Chassis	Black
Air Filter	Removable & Washable
Cooling Fan	2x80mm, 1x120mm
Ordering Information (Part Number)	Black Bezel:D-400-JB Blue Bezel:D-400-JB-BLUE Red Bezel:D-400-JB-RED Silver Bezel:D-400-JB-SILVER
Dimensions (WxHxD)	19.00" x 7.00" x 20.80" 482.6 mm x 177.8 mm x 528.3 mm

Download

Data Sheet (PDF)

Product Drawing (PDF)

FCC Certificate (PDF)

Product Quick Guide (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-230SATA	2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	BPU-340SATA	3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-350SATA	3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	DD-FAN80	80mm Ball Bearing Fan
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISF08	8 Ports Fan Sensor Board
	TC-ISTORM7	2x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	BPN-DE230SS	Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	DD-400-DBLUE	D-400 BLUE DOOR
	DD-400-DRED	D-400 RED DOOR
	DD-400-DSILVER	D-400 SILVER DOOR
	DD-400-SE-BLACK	4U Black Bezel for SE series
	DD-400-SE-BLUE	4U Blue Bezel for SE series
	DD-400-SE-RED	4U Red Bezel for SE series
	DD-400-SE-SILVER	4U Silver Bezel for SE series
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE230SS-WB	Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	DD-FANBAR	Center Support Bar for D Storm 2U 3U 4U Chassis
	BPN-DE350SS	Trayless 3x 5.25" to 5x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-500R8P	Build-to-Order - 500W PS2 Mini Redundant Power Supply	Brackets Not Required
	IX-500R8PD8	Build-to-Order - 500W PS2 Mini High Efficiency Redundant Power Supply	Brackets Not Required
	IS-550R8P	EOL - 550W PS2 Mini Redundant Power Supply	Brackets Not Required
	IS-700R3NP	Build-to-Order - 700W PS2 Mini Redundant Power Supply	Brackets Not Required
	IS-800R3NP	Special Order - 800W PS2 Mini Redundant Power Supply	Brackets Not Required
	IS-950R3NPD8	Build-to-Order - 950W 80 Plus PS2 Mini Redundant Power Supply	BRT-D34UR3KN8-LR (2) BRT-D4UR3N8-RR (1) DD-STANDOFF-12MM (2)
	IS-1000R3NP	EOL - 1000W PS2 Mini Redundant Power Supply	Brackets Not Required
Single
	TC-400PD8	Build-to-Order - 400W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-500PD3	Build-to-Order - 500W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
	TC-500PD8	500W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-680PD8	Build-to-Order - 680W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-700PD8B	700W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-780PD8	Build-to-Order - 780W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-880PD8	Build-to-Order - 880W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-1000PD8	Build-to-Order - 1000W PS2 ATX 80 Plus High Efficiency Switching Power Supply	Brackets Not Required

Compatible Motherboards

Model #	Motherboard Size	Company Name
There are no compatibility motherboard for this model.

Backplane

	Model #	Port
	N-DVR-28030	0
	N-DVR-28041	16
	N-DVR-28042	16
	N-DVR-28043	16
	N-DVR-28044	16
	N-DVR-28045	36
	N-DVR-28046	16
	N-DVR-28047	16
	N-DVR-28048	32
	N-DVR-28049	16
	N-DVR-28049-1	16
	N-DVR-28050	16
	N-DVR-28051	16
	N-DVR-28052	16
	N-DVR-28053	32
	N-DVR-28054	16
	N-DVR-28055	48
	N-DVR-28056	16
	N-DVR-28057	16
	N-DVR-28058	32
	N-DVR-28058-1	16
	N-DVR-28059	16
	N-DVR-28060	16
	N-DVR-28061	16
	N-DVR-28420	0
	N-DVR-28421	0
	N-DVR-28422	0
	N-DVR-28423	0
	N-DVR-28424	0
	N-DVR-28425	0
	N-DVR-28426	0
