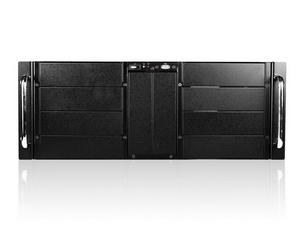

D-410
4U 10-Bay Stylish Storage Server Rackmount

Supports Up to 10 x 5.25" Drive Bays
Front Access USB2.0
120mm x 2 Cooling Fans on Sides
Power and HDD LED
Supports HDD installation from front side

Product Introduction
iStarUSA 4U industrial rackmount chassis D Storm D-410 supports up to seven full-length and full-height add-on cards and total 10 x5.25" drive bays for RAID configuration and high density data storage. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410 provides server or cluster maximum reliability and performance.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards
Chassis Combo

Model Number	D-410
RoHS Compliance	Yes
Form factor	4 U
Standard Drive Bays	5.25" Drives: 10
Indicators	Power, HDD
Switches	Power ON/OFF and System Reset
Expansion Slots	7
Material of Main Chassis	Zinc-Coated Steel
Color of Main Chassis	Black
Front Connector	Front USB 2.0 x 1 Connector
Motherboard Size	12 x 13 (EATX, ATX, microATX)
Cooling Fan	2x120mm
Dimensions (WxHxD)	19.00" x 7.00" x 25.00" 482.6 mm x 177.8 mm x 635.0 mm

Download

Data Sheet (PDF)

Product Drawing (PDF)

FAQ

Q :	How to connect the USB wires on D-410 series to a motherboard?
A :	Please refer to the picture

Optional Accessories

	Model #	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-230SATA	2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	BPU-340SATA	3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-350SATA	3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPN-DE230SS	Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPN-DE340SS	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE230SS-WB	Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-DE340SS-WB	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE350SS	Trayless 3x 5.25" to 5x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-500R8P	Build-to-Order - 500W PS2 Mini Redundant Power Supply	Brackets Not Required
	IX-500R8PD8	Build-to-Order - 500W PS2 Mini High Efficiency Redundant Power Supply	Brackets Not Required
	IS-550R8P	EOL - 550W PS2 Mini Redundant Power Supply	Brackets Not Required
Single
	TC-400PD8	Build-to-Order - 400W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-500PD8	500W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-500PD3	Build-to-Order - 500W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
	IS-680PD8	Build-to-Order - 680W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-700PD8B	700W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-780PD8	Build-to-Order - 780W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-880PD8	Build-to-Order - 880W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-1000PD8	Build-to-Order - 1000W PS2 ATX 80 Plus High Efficiency Switching Power Supply	Brackets Not Required

Compatible Motherboards

Model #	Motherboard Size	Company Name
P8B-C(4L)	ATX	ASUS

P8B-E(4L)	ATX	ASUS

P8B-X	ATX	ASUS

P6T WS Professional	ATX	ASUS

P6X58-E WS	ATX	ASUS

P8B WS	ATX	ASUS

P8C WS	ATX	ASUS

P8P67 WS REVOLUTION	ATX	ASUS

P8Z77 WS	ATX	ASUS

Z9PA-U8	ATX	ASUS

P9X79 WS	CEB	ASUS

Z8PE-D18	EEB	ASUS

Z9PE-D16	EEB	ASUS

Z9PR-D12	EEB	ASUS

Z9PE-D16/2L	EEB	ASUS

Z9PE-D8 WS	EEB	ASUS

P8B-MX	Micro-ATX	ASUS

C216 WS	ATX	ASRock

E3C204	ATX	ASRock

E3C204-4L	ATX	ASRock

E3C204-V+	ATX	ASRock

E3C204-V4L	ATX	ASRock

H77WS-DL	ATX	ASRock

Z77 WS	ATX	ASRock

EN2C602	CEB	ASRock

EN2C602-4L	CEB	ASRock

EN2C602/D12	EEB	ASRock

EN2C602-4L/D12	EEB	ASRock

EP2C602	EEB	ASRock

EP2C602/D16	EEB	ASRock

EP2C602-4L	EEB	ASRock

EN2C602-4L/D16	EEB	ASRock

AD2550R/U3S3	Mini ITX	ASRock

S5512	ATX	TYAN

S7002	CEB	TYAN

S7040	CEB	TYAN

S7010	EEB	TYAN

S7050	EEB	TYAN

S7052	EEB	TYAN

S7045	EEB	TYAN

S7053	EEB	TYAN

S7012	EEB	TYAN

S5510	MicroATX	TYAN

S5515	MicroATX	TYAN

GA-6UASV3	microATX	GIGABYTE

GA-6UASL3	microATX	GIGABYTE

GA-6PXSV4	ATX	GIGABYTE

GA-6PXSV1	ATX	GIGABYTE

GA-6PXSV2	ATX	GIGABYTE

GA-6PXSV3	ATX	GIGABYTE

GA-7PCSL	CEB	GIGABYTE

GA-7PESH4	EEB	GIGABYTE

GA-7PESH2	EEB	GIGABYTE

GA-7PESH3	EEB	GIGABYTE

GA-7PESH1	EEB	GIGABYTE

GA-7PESE3	EEB	GIGABYTE

GA-7PESL	EEB	GIGABYTE

Chassis Combo

Model #

HDD Tray

Front Bezel
Color

Hotswap
3.5" Bay

Hotswap
2.5" Bay

Ext
5.25"

Ext
3.5"

HDD Type

D410-DE10BK	Trayless	10	0	4	3.5" SAS I/II & SATA I/II/III
D410-DE10SL	Trayless	10	0	4	3.5" SAS I/II & SATA I/II/III
D410-DE10BL	Trayless	10	0	4	3.5" SAS I/II & SATA I/II/III
D410-DE10RD	Trayless	10	0	4	3.5" SAS I/II & SATA I/II/III
D410-DE5BK	Trayless	5	0	7	3.5" SAS I/II & SATA I/II/III
D410-DE5SL	Trayless	5	0	7	3.5" SAS I/II & SATA I/II/III
D410-DE5BL	Trayless	5	0	7	3.5" SAS I/II & SATA I/II/III
D410-DE5RD	Trayless	5	0	7	3.5" SAS I/II & SATA I/II/III
D410-10DE1BK	Trayless	10	0	0	3.5" SAS I/II & SATA I/II/III
D410-9DE1BK	Trayless	9	0	1	3.5" SAS I/II & SATA I/II/III
D410-8DE1BK	Trayless	8	0	2	3.5" SAS I/II & SATA I/II/III
D410-7DE1BK	Trayless	7	0	3	3.5" SAS I/II & SATA I/II/III
D410-6DE1BK	Trayless	6	0	4	3.5" SAS I/II & SATA I/II/III
D410-5DE1BK	Trayless	5	0	5	3.5" SAS I/II & SATA I/II/III
D410-4DE1BK	Trayless	4	0	6	3.5" SAS I/II & SATA I/II/III
D410-3DE1BK	Trayless	3	0	7	3.5" SAS I/II & SATA I/II/III
D410-2DE1BK	Trayless	2	0	8	3.5" SAS I/II & SATA I/II/III
D410-DE1BK	Trayless	1	0	9	3.5" SAS I/II & SATA I/II/III
D410-10DE1SL	Trayless	10	0	0	3.5" SAS I/II & SATA I/II/III
D410-9DE1SL	Trayless	9	0	1	3.5" SAS I/II & SATA I/II/III
D410-8DE1SL	Trayless	8	0	2	3.5" SAS I/II & SATA I/II/III
D410-7DE1SL	Trayless	7	0	3	3.5" SAS I/II & SATA I/II/III
D410-6DE1SL	Trayless	6	0	4	3.5" SAS I/II & SATA I/II/III
D410-5DE1SL	Trayless	5	0	5	3.5" SAS I/II & SATA I/II/III
D410-4DE1SL	Trayless	4	0	6	3.5" SAS I/II & SATA I/II/III
D410-3DE1SL	Trayless	3	0	7	3.5" SAS I/II & SATA I/II/III
D410-2DE1SL	Trayless	2	0	8	3.5" SAS I/II & SATA I/II/III
D410-DE1SL	Trayless	1	0	9	3.5" SAS I/II & SATA I/II/III
D410-10DE1BL	Trayless	10	0	0	3.5" SAS I/II & SATA I/II/III
D410-9DE1BL	Trayless	9	0	1	3.5" SAS I/II & SATA I/II/III
D410-8DE1BL	Trayless	8	0	2	3.5" SAS I/II & SATA I/II/III
D410-7DE1BL	Trayless	7	0	3	3.5" SAS I/II & SATA I/II/III
D410-6DE1BL	Trayless	6	0	4	3.5" SAS I/II & SATA I/II/III
D410-5DE1BL	Trayless	5	0	5	3.5" SAS I/II & SATA I/II/III
D410-4DE1BL	Trayless	4	0	6	3.5" SAS I/II & SATA I/II/III
D410-3DE1BL	Trayless	3	0	7	3.5" SAS I/II & SATA I/II/III
D410-2DE1BL	Trayless	2	0	8	3.5" SAS I/II & SATA I/II/III
D410-DE1BL	Trayless	1	0	9	3.5" SAS I/II & SATA I/II/III
D410-10DE1RD	Trayless	10	0	0	3.5" SAS I/II & SATA I/II/III
D410-9DE1RD	Trayless	9	0	1	3.5" SAS I/II & SATA I/II/III
D410-8DE1RD	Trayless	8	0	2	3.5" SAS I/II & SATA I/II/III
D410-7DE1RD	Trayless	7	0	3	3.5" SAS I/II & SATA I/II/III
D410-6DE1RD	Trayless	6	0	4	3.5" SAS I/II & SATA I/II/III
D410-5DE1RD	Trayless	5	0	5	3.5" SAS I/II & SATA I/II/III
D410-4DE1RD	Trayless	4	0	6	3.5" SAS I/II & SATA I/II/III
D410-3DE1RD	Trayless	3	0	7	3.5" SAS I/II & SATA I/II/III
D410-2DE1RD	Trayless	2	0	8	3.5" SAS I/II & SATA I/II/III
D410-DE1RD	Trayless	1	0	9	3.5" SAS I/II & SATA I/II/III
D410-DE8BK	Trayless	8	0	4	3.5" SAS I/II & SATA I/II/III
D410-DE8SL	Trayless	8	0	4	3.5" SAS I/II & SATA I/II/III
D410-DE8BL	Trayless	8	0	4	3.5" SAS I/II & SATA I/II/III
D410-DE8RD	Trayless	8	0	4	3.5" SAS I/II & SATA I/II/III
D410-DE4BK	Trayless	4	0	7	3.5" SAS I/II & SATA I/II/III
D410-DE4SL	Trayless	4	0	7	3.5" SAS I/II & SATA I/II/III
D410-DE4BL	Trayless	4	0	7	3.5" SAS I/II & SATA I/II/III
D410-DE4RD	Trayless	4	0	7	3.5" SAS I/II & SATA I/II/III
D410-DE15BK	Trayless	15	0	0	3.5" SAS I/II & SATA I/II/III
D410-DE15SL	Trayless	15	0	0	3.5" SAS I/II & SATA I/II/III
D410-DE15BL	Trayless	15	0	0	3.5" SAS I/II & SATA I/II/III
D410-DE15RD	Trayless	15	0	0	3.5" SAS I/II & SATA I/II/III
D410-DE12BK	Trayless	12	0	2	3.5" SAS I/II & SATA I/II/III
D410-DE12SL	Trayless	12	0	2	3.5" SAS I/II & SATA I/II/III
D410-DE12BL	Trayless	12	0	2	3.5" SAS I/II & SATA I/II/III
D410-DE12RD	Trayless	12	0	2	3.5" SAS I/II & SATA I/II/III
D410-DE9BK	Trayless	9	0	4	3.5" SAS I/II & SATA I/II/III
D410-DE9SL	Trayless	9	0	4	3.5" SAS I/II & SATA I/II/III
D410-DE9BL	Trayless	9	0	4	3.5" SAS I/II & SATA I/II/III
D410-DE9RD	Trayless	9	0	4	3.5" SAS I/II & SATA I/II/III
D410-DE6BK	Trayless	6	0	6	3.5" SAS I/II & SATA I/II/III
D410-DE6SL	Trayless	6	0	6	3.5" SAS I/II & SATA I/II/III
D410-DE6BL	Trayless	6	0	6	3.5" SAS I/II & SATA I/II/III
D410-DE6RD	Trayless	6	0	6	3.5" SAS I/II & SATA I/II/III
D410-DE3BK	Trayless	3	0	8	3.5" SAS I/II & SATA I/II/III
D410-DE3SL	Trayless	3	0	8	3.5" SAS I/II & SATA I/II/III
D410-DE3BL	Trayless	3	0	8	3.5" SAS I/II & SATA I/II/III
D410-DE3RD	Trayless	3	0	8	3.5" SAS I/II & SATA I/II/III
D410-10B126	Tray	0	60	0	2.5" SATA I/II/III
D410-9B126	Tray	0	54	1	2.5" SATA I/II/III
D410-8B126	Tray	0	48	2	2.5" SATA I/II/III
D410-7B126	Tray	0	42	3	2.5" SATA I/II/III
D410-6B126	Tray	0	36	4	2.5" SATA I/II/III
D410-5B126	Tray	0	30	5	2.5" SATA I/II/III
D410-4B126	Tray	0	24	6	2.5" SATA I/II/III
D410-3B126	Tray	0	18	7	2.5" SATA I/II/III
D410-2B126	Tray	0	12	8	2.5" SATA I/II/III
D410-B126	Tray	0	6	9	2.5" SATA I/II/III
D410-10B124	Tray	0	40	0	2.5" SAS I/II & SATA I/II/III
D410-9B124	Tray	0	36	1	2.5" SAS I/II & SATA I/II/III
D410-8B124	Tray	0	32	2	2.5" SAS I/II & SATA I/II/III
D410-7B124	Tray	0	28	3	2.5" SAS I/II & SATA I/II/III
D410-6B124	Tray	0	24	4	2.5" SAS I/II & SATA I/II/III
D410-5B124	Tray	0	20	5	2.5" SAS I/II & SATA I/II/III
D410-4B124	Tray	0	16	6	2.5" SAS I/II & SATA I/II/III
D410-3B124	Tray	0	12	7	2.5" SAS I/II & SATA I/II/III
D410-2B124	Tray	0	8	8	2.5" SAS I/II & SATA I/II/III
D410-B124	Tray	0	4	9	2.5" SAS I/II & SATA I/II/III
D410-B10BK	Tray	10	0	4	3.5" SAS I/II & SATA I/II/III
D410-B10SL	Tray	10	0	4	3.5" SAS I/II & SATA I/II/III
D410-B10BL	Tray	10	0	4	3.5" SAS I/II & SATA I/II/III
D410-B10RD	Tray	10	0	4	3.5" SAS I/II & SATA I/II/III
D410-B10PL	Tray	10	0	4	3.5" SAS I/II & SATA I/II/III
D410-B5BK	Tray	5	0	7	3.5" SAS I/II & SATA I/II/III
D410-B5SL	Tray	5	0	7	3.5" SAS I/II & SATA I/II/III
D410-B5BL	Tray	5	0	7	3.5" SAS I/II & SATA I/II/III
D410-B5RD	Tray	5	0	7	3.5" SAS I/II & SATA I/II/III
D410-B5PL	Tray	5	0	7	3.5" SAS I/II & SATA I/II/III
D410-B8BK	Tray	8	0	4	3.5" SAS I/II & SATA I/II/III
D410-B8SL	Tray	8	0	4	3.5" SAS I/II & SATA I/II/III
D410-B8BL	Tray	8	0	4	3.5" SAS I/II & SATA I/II/III
D410-B8RD	Tray	8	0	4	3.5" SAS I/II & SATA I/II/III
D410-B8PL	Tray	8	0	4	3.5" SAS I/II & SATA I/II/III
D410-B4BK	Tray	4	0	7	3.5" SAS I/II & SATA I/II/III
D410-B4SL	Tray	4	0	7	3.5" SAS I/II & SATA I/II/III
D410-B4BL	Tray	4	0	7	3.5" SAS I/II & SATA I/II/III
D410-B4RD	Tray	4	0	7	3.5" SAS I/II & SATA I/II/III
D410-B4PL	Tray	4	0	7	3.5" SAS I/II & SATA I/II/III
D410-B15BK	Tray	15	0	0	3.5" SAS I/II & SATA I/II/III
D410-B15SL	Tray	15	0	0	3.5" SAS I/II & SATA I/II/III
D410-B15BL	Tray	15	0	0	3.5" SAS I/II & SATA I/II/III
D410-B15RD	Tray	15	0	0	3.5" SAS I/II & SATA I/II/III
D410-B15PL	Tray	15	0	0	3.5" SAS I/II & SATA I/II/III
D410-B12BK	Tray	12	0	2	3.5" SAS I/II & SATA I/II/III
D410-B12SL	Tray	12	0	2	3.5" SAS I/II & SATA I/II/III
D410-B12BL	Tray	12	0	2	3.5" SAS I/II & SATA I/II/III
D410-B12RD	Tray	12	0	2	3.5" SAS I/II & SATA I/II/III
D410-B12PL	Tray	12	0	2	3.5" SAS I/II & SATA I/II/III
D410-B9BK	Tray	9	0	4	3.5" SAS I/II & SATA I/II/III
D410-B9SL	Tray	9	0	4	3.5" SAS I/II & SATA I/II/III
D410-B9BL	Tray	9	0	4	3.5" SAS I/II & SATA I/II/III
D410-B9RD	Tray	9	0	4	3.5" SAS I/II & SATA I/II/III
D410-B9PL	Tray	9	0	4	3.5" SAS I/II & SATA I/II/III
D410-B6BK	Tray	6	0	6	3.5" SAS I/II & SATA I/II/III
D410-B6SL	Tray	6	0	6	3.5" SAS I/II & SATA I/II/III
D410-B6BL	Tray	6	0	6	3.5" SAS I/II & SATA I/II/III
D410-B6RD	Tray	6	0	6	3.5" SAS I/II & SATA I/II/III
D410-B6PL	Tray	6	0	6	3.5" SAS I/II & SATA I/II/III
D410-B3BK	Tray	3	0	8	3.5" SAS I/II & SATA I/II/III
D410-B3SL	Tray	3	0	8	3.5" SAS I/II & SATA I/II/III
D410-B3BL	Tray	3	0	8	3.5" SAS I/II & SATA I/II/III
D410-B3RD	Tray	3	0	8	3.5" SAS I/II & SATA I/II/III
D410-B3PL	Tray	3	0	8	3.5" SAS I/II & SATA I/II/III
D410-10M1BK	Tray	10	0	0	3.5" SAS I/II & SATA I/II/III
D410-9M1BK	Tray	9	0	1	3.5" SAS I/II & SATA I/II/III
D410-8M1BK	Tray	8	0	2	3.5" SAS I/II & SATA I/II/III
D410-7M1BK	Tray	7	0	3	3.5" SAS I/II & SATA I/II/III
D410-6M1BK	Tray	6	0	4	3.5" SAS I/II & SATA I/II/III
D410-5M1BK	Tray	5	0	5	3.5" SAS I/II & SATA I/II/III
D410-4M1BK	Tray	4	0	6	3.5" SAS I/II & SATA I/II/III
D410-3M1BK	Tray	3	0	7	3.5" SAS I/II & SATA I/II/III
D410-2M1BK	Tray	2	0	8	3.5" SAS I/II & SATA I/II/III
D410-M1BK	Tray	1	0	9	3.5" SAS I/II & SATA I/II/III
D410-10M1SL	Tray	10	0	0	3.5" SAS I/II & SATA I/II/III
D410-9M1SL	Tray	9	0	1	3.5" SAS I/II & SATA I/II/III
D410-8M1SL	Tray	8	0	2	3.5" SAS I/II & SATA I/II/III
D410-7M1SL	Tray	7	0	3	3.5" SAS I/II & SATA I/II/III
D410-6M1SL	Tray	6	0	4	3.5" SAS I/II & SATA I/II/III
D410-5M1SL	Tray	5	0	5	3.5" SAS I/II & SATA I/II/III
D410-4M1SL	Tray	4	0	6	3.5" SAS I/II & SATA I/II/III
D410-3M1SL	Tray	3	0	7	3.5" SAS I/II & SATA I/II/III
D410-2M1SL	Tray	2	0	8	3.5" SAS I/II & SATA I/II/III
D410-M1SL	Tray	1	0	9	3.5" SAS I/II & SATA I/II/III
D410-10M1BL	Tray	10	0	0	3.5" SAS I/II & SATA I/II/III
D410-9M1BL	Tray	9	0	1	3.5" SAS I/II & SATA I/II/III
D410-8M1BL	Tray	8	0	2	3.5" SAS I/II & SATA I/II/III
D410-7M1BL	Tray	7	0	3	3.5" SAS I/II & SATA I/II/III
D410-6M1BL	Tray	6	0	4	3.5" SAS I/II & SATA I/II/III
D410-5M1BL	Tray	5	0	5	3.5" SAS I/II & SATA I/II/III
D410-4M1BL	Tray	4	0	6	3.5" SAS I/II & SATA I/II/III
D410-3M1BL	Tray	3	0	7	3.5" SAS I/II & SATA I/II/III
D410-2M1BL	Tray	2	0	8	3.5" SAS I/II & SATA I/II/III
D410-M1BL	Tray	1	0	9	3.5" SAS I/II & SATA I/II/III
D410-10M1RD	Tray	10	0	0	3.5" SAS I/II & SATA I/II/III
D410-9M1RD	Tray	9	0	1	3.5" SAS I/II & SATA I/II/III
D410-8M1RD	Tray	8	0	2	3.5" SAS I/II & SATA I/II/III
D410-7M1RD	Tray	7	0	3	3.5" SAS I/II & SATA I/II/III
D410-6M1RD	Tray	6	0	4	3.5" SAS I/II & SATA I/II/III
D410-5M1RD	Tray	5	0	5	3.5" SAS I/II & SATA I/II/III
D410-4M1RD	Tray	4	0	6	3.5" SAS I/II & SATA I/II/III
D410-3M1RD	Tray	3	0	7	3.5" SAS I/II & SATA I/II/III
D410-2M1RD	Tray	2	0	8	3.5" SAS I/II & SATA I/II/III
D410-M1RD	Tray	1	0	9	3.5" SAS I/II & SATA I/II/III
D410-10M1PL	Tray	10	0	0	3.5" SAS I/II & SATA I/II/III
D410-9M1PL	Tray	9	0	1	3.5" SAS I/II & SATA I/II/III
D410-8M1PL	Tray	8	0	2	3.5" SAS I/II & SATA I/II/III
D410-7M1PL	Tray	7	0	3	3.5" SAS I/II & SATA I/II/III
D410-6M1PL	Tray	6	0	4	3.5" SAS I/II & SATA I/II/III
D410-5M1PL	Tray	5	0	5	3.5" SAS I/II & SATA I/II/III
D410-4M1PL	Tray	4	0	6	3.5" SAS I/II & SATA I/II/III
D410-3M1PL	Tray	3	0	7	3.5" SAS I/II & SATA I/II/III
D410-2M1PL	Tray	2	0	8	3.5" SAS I/II & SATA I/II/III
D410-M1PL	Tray	1	0	9	3.5" SAS I/II & SATA I/II/III
D410-10T7	Tray	10	0	0	3.5" SAS I/II & SATA I/II/III
D410-9T7	Tray	9	0	1	3.5" SAS I/II & SATA I/II/III
D410-8T7	Tray	8	0	2	3.5" SAS I/II & SATA I/II/III
D410-7T7	Tray	7	0	3	3.5" SAS I/II & SATA I/II/III
D410-6T7	Tray	6	0	4	3.5" SAS I/II & SATA I/II/III
D410-5T7	Tray	5	0	5	3.5" SAS I/II & SATA I/II/III
D410-4T7	Tray	4	0	6	3.5" SAS I/II & SATA I/II/III
D410-3T7	Tray	3	0	7	3.5" SAS I/II & SATA I/II/III
D410-2T7	Tray	2	0	8	3.5" SAS I/II & SATA I/II/III
D410-T7	Tray	1	0	9	3.5" SAS I/II & SATA I/II/III
D410-10T5F	Trayless	10	0	0	3.5" SAS I/II & SATA I/II/III
D410-9T5F	Trayless	9	0	1	3.5" SAS I/II & SATA I/II/III
D410-8T5F	Trayless	8	0	2	3.5" SAS I/II & SATA I/II/III
D410-7T5F	Trayless	7	0	3	3.5" SAS I/II & SATA I/II/III
D410-6T5F	Trayless	6	0	4	3.5" SAS I/II & SATA I/II/III
D410-5T5F	Trayless	5	0	5	3.5" SAS I/II & SATA I/II/III
D410-4T5F	Trayless	4	0	6	3.5" SAS I/II & SATA I/II/III
D410-3T5F	Trayless	3	0	7	3.5" SAS I/II & SATA I/II/III
D410-2T5F	Trayless	2	0	8	3.5" SAS I/II & SATA I/II/III
D410-T5F	Trayless	1	0	9	3.5" SAS I/II & SATA I/II/III

Backplane

	Model #	Port
	N-DVR-28030	0
	N-DVR-28041	16
	N-DVR-28042	16
	N-DVR-28043	16
	N-DVR-28044	16
	N-DVR-28045	36
	N-DVR-28046	16
	N-DVR-28047	16
	N-DVR-28048	32
	N-DVR-28049	16
	N-DVR-28049-1	16
	N-DVR-28050	16
	N-DVR-28051	16
	N-DVR-28052	16
	N-DVR-28053	32
	N-DVR-28054	16
	N-DVR-28055	48
	N-DVR-28056	16
	N-DVR-28057	16
	N-DVR-28058	32
	N-DVR-28058-1	16
	N-DVR-28059	16
	N-DVR-28060	16
	N-DVR-28061	16
	N-DVR-28420	0
	N-DVR-28421	0
	N-DVR-28422	0
	N-DVR-28423	0
	N-DVR-28424	0
	N-DVR-28425	0
	N-DVR-28426	0
