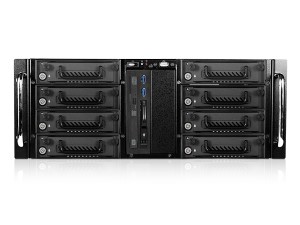

D-410-TG8-25TU
4U 8-bay Stylish Hotswap USB 3.0 Slim ODD Storage Server Rackmount
  • Supports Up to 8x 3.5" and 1x 2.5" HDDs
  • 120mm x 2 Cooling Fans on Sides
  • Front Access USB2.0 with Power and HDD LEDs
  • Supports 3.5" SAS/SATA and 2.5" SATA Hard Drives
  • Supports 6.0Gb/s HDDs
  • Compatible with Slim Optical Drive (12.7mm height)
  • Supports Front Access Two USB 3.0 Ports
  • ATX and PS2 mini Redundant Power Supply Compatible
Product Introduction
4U industrial rackmount chassis D-410-TG8-25TU combines with T-G525-SS SATA/SAS enclosure to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 8x3.5" with USB 3.0 ports for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-TG8-25TU provides server or cluster maximum reliability and performance.

Model NumberD-410-TG8-25TU
RoHS ComplianceYes
Form factor4 U
Standard Drive Bays Hotswap 2.5": 1
Hotswap 3.5": 8
Slim 5.25" Optical: 1
Hotswap HDD Type:3.5" SAS I/II, 3.5" SATA I/II/III, 2.5" SATA I/II/III
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU TypePS2
Expansion Slots7
Material of Main ChassisZinc-Coated Steel
Color of Main ChassisBlack
Front Connector1x USB 2.0 & 2x USB 3.0
Motherboard Size12 x 13 (EATX, ATX, microATX)
Cooling Fan2x120mm
Dimensions (WxHxD)19.00" x 7.00" x 25.00"
482.6 mm x 177.8 mm x 635.0 mm


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
BPU-124V2-SSBuild-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SASpecial Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
T5F-SSEOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-7-SARugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
TC-ISTORM83.5" to 5.25" Hard Drive Cooling Heat Sink
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
RP-4HDD255FEOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
BPN-DE110SSTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
BPN-DE110SS-WBTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-124K-SATrayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K35T-SATrayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Redundant
IX-500R8PD8Build-to-Order - 500W PS2 Mini High Efficiency Redundant Power SupplyBrackets Not Required
IS-550R8PEOL - 550W PS2 Mini Redundant Power SupplyBrackets Not Required
Single
TC-700PD8B700W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
