D-414

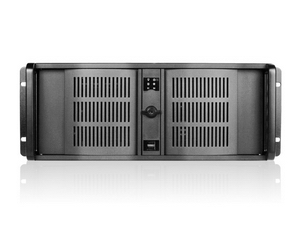

4U 14 Slots Industrial PC Rackmount Chassis
4U 14 Slots Industrial PC Rackmount Chassis
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 120mm x1 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
- 14 Slot Backplane
Product Introduction
The iStarUSA popular industrial computing chassis D-414 is a full size 4U chassis with 14 slot backplane support full-length and full-heights add-on cards. In application of data acquisition, automation, calculation and analysis are the most important elements in industrial computing; D-414 can provide much flexibility and compatibility to ensure continuous operation and expendability for future upgrades.
The iStarUSA popular industrial computing chassis D-414 is a full size 4U chassis with 14 slot backplane support full-length and full-heights add-on cards. In application of data acquisition, automation, calculation and analysis are the most important elements in industrial computing; D-414 can provide much flexibility and compatibility to ensure continuous operation and expendability for future upgrades.
| Specifications | Download | FAQ |
| Optional Accessories | Compatible Power Supplies | Compatible Motherboards |
| Chassis Combo | Back Panel |  |
| Model Number | D-414 |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays |
3.5" Drives: 1 3.5" Drive (internal): 2 5.25" Drives: 4 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | PS2 |
| Expansion Slots | 14 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 2.0 |
| Air Filter | Removable & Washable |
| Motherboard Size | Passive backplane/ Single board |
| Cooling Fan | 1x120mm |
| Ordering Information (Part Number) | Black Bezel:D-414 Blue Bezel:D-414-BLUE Red Bezel:D-414-RED Silver Bezel:D-414-SILVER |
| Dimensions (WxHxD) | 19.00" x 7.00" x 20.80" 482.6 mm x 177.8 mm x 528.3 mm |
FAQ
There are no FAQ entries for this model. |
Optional Accessories
| Model # | Description | |
 | BPU-124V2-SS | Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-126-SA | Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-230SATA | 2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-340SATA | 3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack |
 | BPU-350SATA | 3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack |
 | DIY-RHF03 | Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket |
 | RP-COMBO-SLIM | 5.25" Optical Drive and Floppy Drive Cage Holder |
 | RP-COMBO-SLIM2535 | 2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage |
 | RP-FDD35 | 5.25" Drive Bay Bracket for 3.5" Devices |
 | RP-HDD2.5 | 2.5" to 3.5" Hard Drive Mounting Bracket |
 | RP-HDD25BC | 2.5" HDD SSD Mounting Bracket for 3.5" Bay |
 | RP-HDD25P | 3.5" Drive Bay Bracket for 2x 2.5" SSDs |
 | RP-HDD3.5 | 3.5" to 5.25" Hard Drive Mounting Bracket |
 | RP-HUB-SAUF | 3.5" Combo Hub for USB2.0/ Firewire/ e-SATA |
 | RP-READER35 | Build-to-Order - All-in-one USB 2.0 Card Reader |
 | T-25HD-SI | Build-to-Order - 2.5" SATA HDD SSD Slot Carrier |
 | T5F-SS | EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack |
 | T5-SA | Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack |
 | T-7M1-SATA | 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | T-7-SA | Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack |
 | TC-ISF08 | 8 Ports Fan Sensor Board |
 | TC-ISTORM7 | 2x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter |
 | TC-ISTORM8 | 3.5" to 5.25" Hard Drive Cooling Heat Sink |
 | TC-RAIL-20 | 20" Sliding Rail Kit for Most Rackmount Chassis |
 | TC-RAIL-24 | 24" Sliding Rail Kit for Most Rackmount Chassis |
 | TC-RAIL-26 | 26" Sliding Rail Kit for Most Rackmount Chassis |
 | BPN-DE230SS | Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack |
 | BPN-DE340SS | Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack |
 | RP-2HDD2535 | 5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives |
 | RP-4HDD255F | EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket |
 | DD-400-DBLUE | D-400 BLUE DOOR |
 | DD-400-DRED | D-400 RED DOOR |
 | DD-400-DSILVER | D-400 SILVER DOOR |
 | DD-400-SE-BLACK | 4U Black Bezel for SE series |
 | DD-400-SE-BLUE | 4U Blue Bezel for SE series |
 | DD-400-SE-RED | 4U Red Bezel for SE series |
 | DD-400-SE-SILVER | 4U Silver Bezel for SE series |
 | BPN-DE110SS | Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack |
 | BPU-124DE-SS | 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack |
 | T-G525-SS | Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack |
 | BPN-DE110SS-WB | Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel |
 | BPN-DE230SS-WB | Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel |
 | BPN-DE340SS-WB | Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel |
 | BPN-124K-SA | Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-5K3525U-SA | Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0 |
 | T-5K225T-SA | Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack |
 | T-5K35T-SA | Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack |
 | T-5K25TU-SA | Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0 |
 | DD-FANBAR | Center Support Bar for D Storm 2U 3U 4U Chassis |
 | BPN-DE350SS | Trayless 3x 5.25" to 5x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack |
Compatible Power Supplies
| Model # | Description | Required Bracket(s) | |
| Redundant | |||
 | IX-500R8PD8 | Build-to-Order - 500W PS2 Mini High Efficiency Redundant Power Supply | Brackets Not Required |
 | IS-500R8P | Build-to-Order - 500W PS2 Mini Redundant Power Supply | Brackets Not Required |
 | IS-550R8P | EOL - 550W PS2 Mini Redundant Power Supply | Brackets Not Required |
 | IS-700R3NP | Build-to-Order - 700W PS2 Mini Redundant Power Supply | Brackets Not Required |
 | IS-800R3NP | Special Order - 800W PS2 Mini Redundant Power Supply | Brackets Not Required |
 | IS-950R3NPD8 | Build-to-Order - 950W 80 Plus PS2 Mini Redundant Power Supply | BRT-D34UR3KN8-LR (2) BRT-D4UR3N8-RR (1) DD-STANDOFF-12MM (2) |
 | IS-1000R3NP | EOL - 1000W PS2 Mini Redundant Power Supply | Brackets Not Required |
| Single | |||
 | TC-400PD8 | Build-to-Order - 400W PS2 ATX High Efficiency Switching Power Supply | Brackets Not Required |
 | TC-500PD3 | Build-to-Order - 500W PS3 Size ATX12V Switching Power Supply | Brackets Not Required |
 | TC-500PD8 | 500W PS2 ATX High Efficiency Switching Power Supply | Brackets Not Required |
 | IS-680PD8 | Build-to-Order - 680W PS2 ATX High Efficiency Switching Power Supply | Brackets Not Required |
 | TC-700PD8B | 700W PS2 ATX High Efficiency Switching Power Supply | Brackets Not Required |
 | IS-780PD8 | Build-to-Order - 780W PS2 ATX High Efficiency Switching Power Supply | Brackets Not Required |
 | IS-880PD8 | Build-to-Order - 880W PS2 ATX High Efficiency Switching Power Supply | Brackets Not Required |
 | IS-1000PD8 | Build-to-Order - 1000W PS2 ATX 80 Plus High Efficiency Switching Power Supply | Brackets Not Required |
Compatible Motherboards
| Model # | Motherboard Size | Company Name |
There are no compatibility motherboard for this model. | ||
Chassis Combo
| Model # | HDD Tray | Front Bezel Color | Hotswap 3.5" Bay |
Hotswap 2.5" Bay | Ext 5.25" |
Ext 3.5" | HDD Type |
 | D414-DE5BK-SL | Trayless | Silver | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5SL-SL | Trayless | Silver | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5BL-SL | Trayless | Silver | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5RD-SL | Trayless | Silver | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5BK-RD | Trayless | Red | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5SL-RD | Trayless | Red | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5BL-RD | Trayless | Red | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5RD-RD | Trayless | Red | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5BK-BL | Trayless | Blue | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5SL-BL | Trayless | Blue | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5BL-BL | Trayless | Blue | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5RD-BL | Trayless | Blue | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5BK | Trayless | Black | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5SL | Trayless | Black | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5BL | Trayless | Black | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE5RD | Trayless | Black | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1BK-SL | Trayless | Silver | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1BK-SL | Trayless | Silver | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1BK-SL | Trayless | Silver | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1BK-SL | Trayless | Silver | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1SL-SL | Trayless | Silver | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1SL-SL | Trayless | Silver | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1SL-SL | Trayless | Silver | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1SL-SL | Trayless | Silver | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1BL-SL | Trayless | Silver | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1BL-SL | Trayless | Silver | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1BL-SL | Trayless | Silver | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1BL-SL | Trayless | Silver | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1RD-SL | Trayless | Silver | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1RD-SL | Trayless | Silver | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1RD-SL | Trayless | Silver | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1RD-SL | Trayless | Silver | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1BK-RD | Trayless | Red | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1BK-RD | Trayless | Red | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1BK-RD | Trayless | Red | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1BK-RD | Trayless | Red | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1SL-RD | Trayless | Red | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1SL-RD | Trayless | Red | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1SL-RD | Trayless | Red | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1SL-RD | Trayless | Red | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1BL-RD | Trayless | Red | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1BL-RD | Trayless | Red | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1BL-RD | Trayless | Red | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1BL-RD | Trayless | Red | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1RD-RD | Trayless | Red | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1RD-RD | Trayless | Red | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1RD-RD | Trayless | Red | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1RD-RD | Trayless | Red | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1BK-BL | Trayless | Blue | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1BK-BL | Trayless | Blue | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1BK-BL | Trayless | Blue | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1BK-BL | Trayless | Blue | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1SL-BL | Trayless | Blue | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1SL-BL | Trayless | Blue | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1SL-BL | Trayless | Blue | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1SL-BL | Trayless | Blue | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1BL-BL | Trayless | Blue | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1BL-BL | Trayless | Blue | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1BL-BL | Trayless | Blue | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1BL-BL | Trayless | Blue | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1RD-BL | Trayless | Blue | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1RD-BL | Trayless | Blue | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1RD-BL | Trayless | Blue | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1RD-BL | Trayless | Blue | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1BK | Trayless | Black | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1BK | Trayless | Black | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1BK | Trayless | Black | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1BK | Trayless | Black | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1SL | Trayless | Black | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1SL | Trayless | Black | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1SL | Trayless | Black | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1SL | Trayless | Black | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1BL | Trayless | Black | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1BL | Trayless | Black | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1BL | Trayless | Black | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1BL | Trayless | Black | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4DE1RD | Trayless | Black | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3DE1RD | Trayless | Black | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2DE1RD | Trayless | Black | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE1RD | Trayless | Black | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-25M2-SL | Trayless | Silver | 0 | 2 | 4 | 0 | 2.5" SATA I/II |
 | D414-25M2-RD | Trayless | Red | 0 | 2 | 4 | 0 | 2.5" SATA I/II |
 | D414-25M2-BL | Trayless | Blue | 0 | 2 | 4 | 0 | 2.5" SATA I/II |
 | D414-25M2 | Trayless | Black | 0 | 2 | 4 | 0 | 2.5" SATA I/II |
 | D414-DE4BK | Trayless | Black | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4SL | Trayless | Black | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4BL | Trayless | Black | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4RD | Trayless | Black | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3BK | Trayless | Black | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3SL | Trayless | Black | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3BL | Trayless | Black | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3RD | Trayless | Black | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4BK-SL | Trayless | Silver | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4SL-SL | Trayless | Silver | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3BK-SL | Trayless | Silver | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4RD-SL | Trayless | Silver | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4BL-SL | Trayless | Silver | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3RD-SL | Trayless | Silver | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3BL-SL | Trayless | Silver | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3SL-SL | Trayless | Silver | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4BL-RD | Trayless | Red | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4SL-RD | Trayless | Red | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4BK-RD | Trayless | Red | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4RD-RD | Trayless | Red | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3BK-RD | Trayless | Red | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3SL-RD | Trayless | Red | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3BL-RD | Trayless | Red | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3RD-RD | Trayless | Red | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4BK-BL | Trayless | Blue | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4SL-BL | Trayless | Blue | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4BL-BL | Trayless | Blue | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE4RD-BL | Trayless | Blue | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3BK-BL | Trayless | Blue | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3SL-BL | Trayless | Blue | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3BL-BL | Trayless | Blue | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-DE3RD-BL | Trayless | Blue | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4B126-SL | Tray | Silver | 0 | 24 | 0 | 1 | 2.5" SATA I/II/III |
 | D414-3B126-SL | Tray | Silver | 0 | 18 | 1 | 1 | 2.5" SATA I/II/III |
 | D414-2B126-SL | Tray | Silver | 0 | 12 | 2 | 1 | 2.5" SATA I/II/III |
 | D414-B126-SL | Tray | Silver | 0 | 6 | 3 | 1 | 2.5" SATA I/II/III |
 | D414-4B124-SL | Tray | Silver | 0 | 16 | 0 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-3B124-SL | Tray | Silver | 0 | 12 | 1 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-2B124-SL | Tray | Silver | 0 | 8 | 2 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-B124-SL | Tray | Silver | 0 | 4 | 3 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-B5BK-SL | Tray | Silver | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5SL-SL | Tray | Silver | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5BL-SL | Tray | Silver | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5RD-SL | Tray | Silver | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5PL-SL | Tray | Silver | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4BK-SL | Tray | Silver | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4SL-SL | Tray | Silver | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4BL-SL | Tray | Silver | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4RD-SL | Tray | Silver | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4PL-SL | Tray | Silver | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3BK-SL | Tray | Silver | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3SL-SL | Tray | Silver | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3BL-SL | Tray | Silver | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3RD-SL | Tray | Silver | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3PL-SL | Tray | Silver | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1BK-SL | Tray | Silver | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1BK-SL | Tray | Silver | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1BK-SL | Tray | Silver | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1BK-SL | Tray | Silver | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1SL-SL | Tray | Silver | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1SL-SL | Tray | Silver | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1SL-SL | Tray | Silver | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1SL-SL | Tray | Silver | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1BL-SL | Tray | Silver | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1BL-SL | Tray | Silver | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1BL-SL | Tray | Silver | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1BL-SL | Tray | Silver | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1RD-SL | Tray | Silver | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1RD-SL | Tray | Silver | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1RD-SL | Tray | Silver | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1RD-SL | Tray | Silver | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1PL-SL | Tray | Silver | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1PL-SL | Tray | Silver | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1PL-SL | Tray | Silver | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1PL-SL | Tray | Silver | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4T7-SL | Tray | Silver | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3T7-SL | Tray | Silver | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2T7-SL | Tray | Silver | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-T7-SL | Tray | Silver | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4T5F-SL | Trayless | Silver | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3T5F-SL | Trayless | Silver | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2T5F-SL | Trayless | Silver | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-T5F-SL | Trayless | Silver | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4B126-RD | Tray | Red | 0 | 24 | 0 | 1 | 2.5" SATA I/II/III |
 | D414-3B126-RD | Tray | Red | 0 | 18 | 1 | 1 | 2.5" SATA I/II/III |
 | D414-2B126-RD | Tray | Red | 0 | 12 | 2 | 1 | 2.5" SATA I/II/III |
 | D414-B126-RD | Tray | Red | 0 | 6 | 3 | 1 | 2.5" SATA I/II/III |
 | D414-4B124-RD | Tray | Red | 0 | 16 | 0 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-3B124-RD | Tray | Red | 0 | 12 | 1 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-2B124-RD | Tray | Red | 0 | 8 | 2 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-B124-RD | Tray | Red | 0 | 4 | 3 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-B5BK-RD | Tray | Red | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5SL-RD | Tray | Red | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5BL-RD | Tray | Red | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5RD-RD | Tray | Red | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5PL-RD | Tray | Red | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4BK-RD | Tray | Red | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4SL-RD | Tray | Red | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4BL-RD | Tray | Red | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4RD-RD | Tray | Red | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4PL-RD | Tray | Red | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3BK-RD | Tray | Red | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3SL-RD | Tray | Red | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3BL-RD | Tray | Red | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3RD-RD | Tray | Red | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3PL-RD | Tray | Red | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1BK-RD | Tray | Red | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1BK-RD | Tray | Red | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1BK-RD | Tray | Red | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1BK-RD | Tray | Red | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1SL-RD | Tray | Red | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1SL-RD | Tray | Red | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1SL-RD | Tray | Red | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1SL-RD | Tray | Red | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1BL-RD | Tray | Red | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1BL-RD | Tray | Red | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1BL-RD | Tray | Red | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1BL-RD | Tray | Red | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1RD-RD | Tray | Red | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1RD-RD | Tray | Red | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1RD-RD | Tray | Red | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1RD-RD | Tray | Red | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1PL-RD | Tray | Red | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1PL-RD | Tray | Red | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1PL-RD | Tray | Red | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1PL-RD | Tray | Red | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4T7-RD | Tray | Red | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3T7-RD | Tray | Red | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2T7-RD | Tray | Red | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-T7-RD | Tray | Red | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4T5F-RD | Trayless | Red | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3T5F-RD | Trayless | Red | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2T5F-RD | Trayless | Red | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-T5F-RD | Trayless | Red | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4B126-BL | Tray | Blue | 0 | 24 | 0 | 1 | 2.5" SATA I/II/III |
 | D414-3B126-BL | Tray | Blue | 0 | 18 | 1 | 1 | 2.5" SATA I/II/III |
 | D414-2B126-BL | Tray | Blue | 0 | 12 | 2 | 1 | 2.5" SATA I/II/III |
 | D414-B126-BL | Tray | Blue | 0 | 6 | 3 | 1 | 2.5" SATA I/II/III |
 | D414-4B124-BL | Tray | Blue | 0 | 16 | 0 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-3B124-BL | Tray | Blue | 0 | 12 | 1 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-2B124-BL | Tray | Blue | 0 | 8 | 2 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-B124-BL | Tray | Blue | 0 | 4 | 3 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-B5BK-BL | Tray | Blue | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5SL-BL | Tray | Blue | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5BL-BL | Tray | Blue | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5RD-BL | Tray | Blue | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5PL-BL | Tray | Blue | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4BK-BL | Tray | Blue | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4SL-BL | Tray | Blue | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4BL-BL | Tray | Blue | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4RD-BL | Tray | Blue | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4PL-BL | Tray | Blue | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3BK-BL | Tray | Blue | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3SL-BL | Tray | Blue | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3BL-BL | Tray | Blue | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3RD-BL | Tray | Blue | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3PL-BL | Tray | Blue | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1BK-BL | Tray | Blue | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1BK-BL | Tray | Blue | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1BK-BL | Tray | Blue | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1BK-BL | Tray | Blue | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1SL-BL | Tray | Blue | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1SL-BL | Tray | Blue | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1SL-BL | Tray | Blue | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1SL-BL | Tray | Blue | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1BL-BL | Tray | Blue | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1BL-BL | Tray | Blue | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1BL-BL | Tray | Blue | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1BL-BL | Tray | Blue | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1RD-BL | Tray | Blue | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1RD-BL | Tray | Blue | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1RD-BL | Tray | Blue | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1RD-BL | Tray | Blue | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1PL-BL | Tray | Blue | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1PL-BL | Tray | Blue | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1PL-BL | Tray | Blue | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1PL-BL | Tray | Blue | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4T7-BL | Tray | Blue | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3T7-BL | Tray | Blue | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2T7-BL | Tray | Blue | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-T7-BL | Tray | Blue | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4T5F-BL | Trayless | Blue | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3T5F-BL | Trayless | Blue | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2T5F-BL | Trayless | Blue | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-T5F-BL | Trayless | Blue | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4B126 | Tray | Black | 0 | 24 | 0 | 1 | 2.5" SATA I/II/III |
 | D414-3B126 | Tray | Black | 0 | 18 | 1 | 1 | 2.5" SATA I/II/III |
 | D414-2B126 | Tray | Black | 0 | 12 | 2 | 1 | 2.5" SATA I/II/III |
 | D414-B126 | Tray | Black | 0 | 6 | 3 | 1 | 2.5" SATA I/II/III |
 | D414-4B124 | Tray | Black | 0 | 16 | 0 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-3B124 | Tray | Black | 0 | 12 | 1 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-2B124 | Tray | Black | 0 | 8 | 2 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-B124 | Tray | Black | 0 | 4 | 3 | 1 | 2.5" SAS I/II & SATA I/II/III |
 | D414-B5BK | Tray | Black | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5SL | Tray | Black | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5BL | Tray | Black | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5RD | Tray | Black | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B5PL | Tray | Black | 5 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4BK | Tray | Black | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4SL | Tray | Black | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4BL | Tray | Black | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4RD | Tray | Black | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B4PL | Tray | Black | 4 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3BK | Tray | Black | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3SL | Tray | Black | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3BL | Tray | Black | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3RD | Tray | Black | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-B3PL | Tray | Black | 3 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1BK | Tray | Black | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1BK | Tray | Black | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1BK | Tray | Black | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1BK | Tray | Black | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1SL | Tray | Black | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1SL | Tray | Black | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1SL | Tray | Black | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1SL | Tray | Black | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1BL | Tray | Black | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1BL | Tray | Black | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1BL | Tray | Black | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1BL | Tray | Black | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1RD | Tray | Black | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1RD | Tray | Black | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1RD | Tray | Black | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1RD | Tray | Black | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4M1PL | Tray | Black | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3M1PL | Tray | Black | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2M1PL | Tray | Black | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-M1PL | Tray | Black | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4T7 | Tray | Black | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3T7 | Tray | Black | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2T7 | Tray | Black | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-T7 | Tray | Black | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-4T5F | Trayless | Black | 4 | 0 | 0 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-3T5F | Trayless | Black | 3 | 0 | 1 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-2T5F | Trayless | Black | 2 | 0 | 2 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D414-T5F | Trayless | Black | 1 | 0 | 3 | 1 | 3.5" SAS I/II & SATA I/II/III |
 | D-414-SILVER | Silver | 0 | 0 | 4 | 1 | ||
 | D-414-BLUE | Blue | 0 | 0 | 4 | 1 | ||
 | D-414-RED | Red | 0 | 0 | 4 | 1 |
Backplane
| Model # | Port | |
 | N-DVR-28030 | 0 |
 | N-DVR-28041 | 16 |
 | N-DVR-28042 | 16 |
 | N-DVR-28043 | 16 |
 | N-DVR-28044 | 16 |
 | N-DVR-28045 | 36 |
 | N-DVR-28046 | 16 |
 | N-DVR-28047 | 16 |
 | N-DVR-28048 | 32 |
 | N-DVR-28049 | 16 |
 | N-DVR-28049-1 | 16 |
 | N-DVR-28050 | 16 |
 | N-DVR-28051 | 16 |
 | N-DVR-28052 | 16 |
 | N-DVR-28053 | 32 |
 | N-DVR-28054 | 16 |
 | N-DVR-28055 | 48 |
 | N-DVR-28056 | 16 |
 | N-DVR-28057 | 16 |
 | N-DVR-28058 | 32 |
 | N-DVR-28058-1 | 16 |
 | N-DVR-28059 | 16 |
 | N-DVR-28060 | 16 |
 | N-DVR-28061 | 16 |
 | N-DVR-28420 | 0 |
 | N-DVR-28421 | 0 |
 | N-DVR-28422 | 0 |
 | N-DVR-28423 | 0 |
 | N-DVR-28424 | 0 |
 | N-DVR-28425 | 0 |
 | N-DVR-28426 | 0 |
Featured Videos
 | Description: How to Install the Optional Fan Controller Board (TC-ISF08) in Your Server Chassis Products: All above chassis |
 | Description: How to Install BPU-340SATA in D-400 Server Chassis Products: D-400,D-400SE,D-400SEA,D-400P,D-400-6,D-400-6SE,D-400A,D-400A-6,D-400ASE,D-414,D-400-7P,D-400-7P,D-400-JB,D-400L-7,D-400L-7SE |
 | Description: How to Install an Internal 3.5" HDD in your D-400 Chassis Products: D-400,D-400SE,D-400SEA,D-400P,D-400-6,D-400-6SE,D-400A,D-400A-6,D-400ASE,D-414 |
Featured Videos
SUPPORT
Providing technical support as our top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
