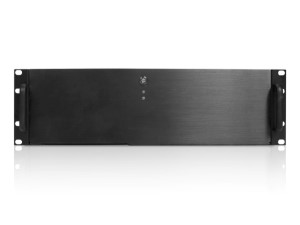

Industrial Chassis | iStarUSA Products | DN-300-50P8 - 3U 5.25" 3-Bay Compact microATX Chassis with 500W Power Supply

DN-300-50P8
3U 5.25" 3-Bay Compact microATX Chassis with 500W Power Supply

Sleek aluminum front bezel with key lock design
Supports standard ATX and mini redundant power supply
Standard 3x 5.25" bays available
2x USB 3.0 ports in front for easy access
Rackmount and desktop convertible
500W power supply

Product Introduction
The DN-105-T, DN-200, DN-300, and DN-400 chassis are designed with elegance and functionality fit for Audio/Video industry and Home Theater Personal Computer (HTPC). With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation. DN series is ideal platform for HTPC build using popular AMD and Intel processors.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	DN-300-50P8
RoHS Compliance	Yes
Form factor	3 U
Standard Drive Bays	3.5" Drive (internal): 4 5.25" Drives: 3
Indicators	Power, HDD
Switches	Power
Supported PSU Type	ATX PS2/ mini-Redundant
Expansion Slots	4
Security	Key Lock
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	SGCC 1.0mm
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 3.0
Motherboard Size	9.6 x 9.6 (microATX, mini-ITX)
Optional Fan:	120mm x1, 80mm x2
Dimensions (WxHxD)	18.98" x 5.25" x 19.26" 482.1 mm x 133.3 mm x 489.2 mm

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	BPX-35TF-SA
	BPX-124-SA	5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPX-35U3-SA	3.5" to 2.5" SATA 6 Gbps HDD SSD Internal and External USB 3.0 Hot-swap Rack
	BPU-124DE-HD	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 12 Gb/s HD miniSAS Hot-swap Rack
	BPX-525-SA	EOL - 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with LCD
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T-7M1-SATA-KL	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack with Key Lock
	BPU-230SATA	2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE230SS	Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPN-DE230SS-WB	Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPU-230SATA-KL	2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack with Key Lock
	BPU-340SATA	3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-350SATA	3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE340SS	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPN-DE350SS	Trayless 3x 5.25" to 5x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPN-DE340SS-WB	Trayless 3x 5.25" to 4x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPU-340SATA-KL	3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack with Key Lock
	BPU-350SATA-KL	3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack with Key Lock
	RP-RAIL-20-1U	20" Sliding Rail Kit for 1U Short Rackmount Chassis
