M-140HD-ITX

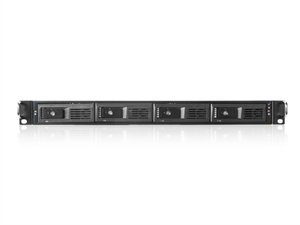

1U 4-Bay Trayless Storage Server Rackmount Chassis 12Gb/s HDD SFF-8643 Backplane

4 Trayless Hot-swappable Bays for 3.5" HDDs
Worlds First Trayless Server Rackmount
HD miniSAS (SFF-8643) HDD Backplane
Metal Key Lock for HDD Front Bezel
Fully RoHS Compliant
Built-in 300W Flex PSU
Supports 3.5" SAS I/II/III and SATA I/II/III HDD
High Performance Transfer Rate up to 12Gb/s

Product Introduction
The M-140HD-ITX M series of trayless storage server rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage servers. The chassis also has a built-in 250W flex power supply and one HD miniSAS (SFF-8643) backplane to support the latest SAS and SATA drives. The M series chassis are also available in 2U, 3U, and 4U form factors.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	M-140HD-ITX
RoHS Compliance	Yes
Form factor	1 U
Standard Drive Bays	2.5" Drive (internal): 1 Hotswap 3.5": 4
Hotswap HDD Type:	3.5" SAS I/II/III & SATA I/II/III
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	300W Flex PSU included
Expansion Slots	1 (Low profile)
Security	Key Lock
Material of Front Bezel	Aluminum with Steel
Material of Handle	Aluminum
Material of Main Chassis	Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Motherboard Size	6.7 x 6.7 (mini-ITX)
Cooling Fan	2x40mm
Dimensions (WxHxD)	19.00" x 1.75" x 15.75" 482.6 mm x 44.4 mm x 400.0 mm
Notes	- standard I/O shield will NOT fit any 1U chassis. - power cord is not included.

Download

Data Sheet (PDF)

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	RP-RAIL-20-1U	20" Sliding Rail Kit for 1U Short Rackmount Chassis

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Single
	TC-1U15FX1	Special Order - 1U 150W Flex Power Supply	Brackets Not Required
	TC-1U18FX1	1U 180W Flex Power Supply	Brackets Not Required
	TC-1U22FX8	Special Order - 1U 220W Flex High Efficiency Power Supply	Brackets Not Required
	TC-1U30FX8	1U 300W Flex High Efficiency Power Supply	Brackets Not Required
