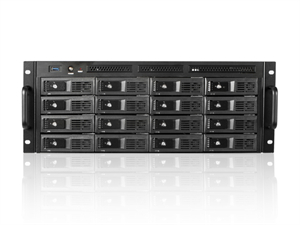

4U 16-Bay Trayless Storage Server Rackmount Chassis 12Gb/s HDD SFF-8643 Backplane
4U 16-Bay Trayless Storage Server Rackmount Chassis 12Gb/s HDD SFF-8643 Backplane
- 16 trayless hot-swappable bays for 3.5" HDDs
- Worlds first trayless server rackmount
- HD miniSAS (SFF-8643) HDD Backplane
- Metal key lock for HDD front bezel
- Fully RoHS compliant
- USB 3.0 in front for easy access
- Supports standard ATX power supplies
- Compatible with redundant power supplies
- High density storage server chassis
- Supports 3.5" SAS I/II/III and SATA I/II/III HDD
- High Performance Transfer Rate up to 12Gb/s
Product Introduction
The M-4160HD-ATX M series of trayless storage server rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage servers. The chassis is equipped with four HD miniSAS (SFF-8643) backplanes to support the latest SAS and SATA hard drives and also is compatible with ATX power supplies and mini redundant power supplies. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.
The M-4160HD-ATX M series of trayless storage server rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage servers. The chassis is equipped with four HD miniSAS (SFF-8643) backplanes to support the latest SAS and SATA hard drives and also is compatible with ATX power supplies and mini redundant power supplies. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.
| Model Number | M-4160HD-ATX |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays |
2.5" Drive (internal): 1 Hotswap 2.5": 2 with T-C25HD (Opt.) Hotswap 3.5": 16 Slim 5.25" Optical: 1 |
| Hotswap HDD Type: | 3.5" SAS I/II/III & SATA I/II/III |
| Indicators | Power, HDD |
| Switches | Power, Reset |
| Supported PSU Type | Standard ATX (PS2) |
| Expansion Slots | 7 |
| Security | Key Lock |
| Material of Front Bezel | Aluminum with Steel |
| Material of Handle | Aluminum |
| Material of Main Chassis | Steel |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Front Connector | 1x USB 3.0 |
| Motherboard Size | 12 x 9.6 (ATX, microATX, mini-ITX) |
| Cooling Fan | 3x120mm |
| Optional Fan: | 60mm x2 |
| Dimensions (WxHxD) | 19.00" x 6.92" x 22.85" 482.6 mm x 175.8 mm x 580.4 mm |
| Notes | - each hdd backplane (for 4 hard drives) requires two Molex power connectors from the power supply. |
