Industrial Chassis | iStarUSA Products | S-46-DE6 - EOL - Compact Stylish 6x 3.5" Hotswap Trayless mini-ITX Tower

S-46-DE6

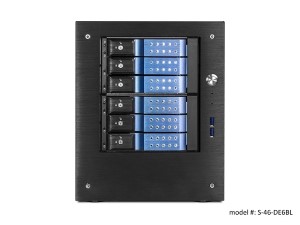

EOL - Compact Stylish 6x 3.5" Hotswap Trayless mini-ITX Tower

Sleek Front Panel with Power Button and Two USB 3.0 Ports
6x 3.5" Trayless Hotswap Bays
Aluminum Front Panel
Heavy Duty SGCC Construction
Support Standard I/O Slot
Support mini-ITX Motherboard

Product Introduction
The external multi-bay S-46-DE6 compact tower is designed especially for storage applications and NVR solutions. The wide variety of the tower with iStarUSA hard drive cages is able to easily max the hard drive capacity up to six 3.5" bays for storing mass data. S-46-DE6 tower chassis with solid construction is a cost-effective and flexible solution for your critical data storage.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	S-46-DE6
RoHS Compliance	Yes
Form factor	Tower U
Standard Drive Bays	3.5" Drive (internal): 1 Hotswap 3.5": 6
Indicators	Power, HDD
Switches	Power
Supported PSU Type	1U Flex
Expansion Slots	1
Material of Front Bezel	Aluminum
Material of Main Chassis	SECC 0.8mm
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 3.0
Motherboard Size	6.7 x 6.7 (mini-ITX)
Ordering Information (Part Number)	Black HDD Handle:S-46-DE6BK Blue HDD Handle:S-46-DE6BL Red HDD Handle:S-46-DE6RD Silver HDD Handle:S-46-DE6SL Wood Look Handle:S-46-DE6WB
Dimensions (WxHxD)	8.69" x 10.92" x 12.79" 220.7 mm x 277.4 mm x 324.9 mm

Download

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPN-DE230SS	Trayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
	BPU-230SATA	2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE230SS-WB	Trayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
