DAGE1040DE-PM
10-bay 3.5" SATA 6.0 Gb/s eSATA-Port Multiplier Trayless JBOD Enclosure 250W PSU
  • LED Indicators for Power and Activity on Each Hard Drive
  • 2x 80mm Cooling Fans for Ventilation
  • 2x eSATA Connectors with Port Multiplier Support
  • Hot-swappable Both on Host and Device
  • Supports 10x 3.5" SATA 6Gb/s Hard Drives
  • Individual Key Lock of each HDD Tray for Physical Security
  • Trayless Design





Product Introduction

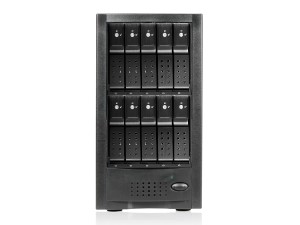

DAGE1040DE-PM is an external 10-bay trayless hot-swappable SATA disk array storage tower. It provides users a big storage capacity for up to 10 hard drives for RAID configurations. This external tower is designed with high quality eSATA (Port Multiplier) connectors. Two quiet 80mm cooling fans offer long lasting and enhanced thermal cooling solution. DAGE1040DE-PM provides maximum storage and performance to high density storage system.

Model NumberDAGE1040DE-PM
RoHS Compliance VersionYes
Host Interface2x eSATA-Port Multiplier
HDD Interface3.5" SATA I/II/III
Hotswap 3.5"10
LED DisplayPower and HDD Activity
MaterialSteel
Main ColorBlack
Power Supply250
Raid LevelConfigured by Host Controller
Cooling Fan2x80mm
Ordering Information
(Part Number)
Black HDD Handle:DAGE1040DEBK-PM
Blue HDD Handle:DAGE1040DEBL-PM
Red HDD Handle:DAGE1040DERD-PM
Silver HDD Handle:DAGE1040DESL-PM
Dimensions (WxHxD)8.00" x 14.00" x 18.00"
203.2 mm x 355.6 mm x 457.2 mm
FAQ


There are no FAQ entries for this model.
Accessories

ImageAccessoryDescription
CAGE-ESA2ESABuild-to-Order - ESATA to ESATA External SATA Cable

Connection Diagram
Featured Videos
