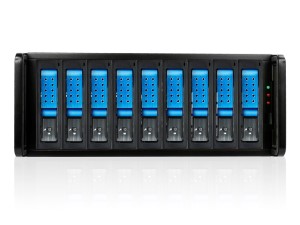

DAGE409U40DE-PM
4U 9-bay 3.5" SATA 6.0Gb/s eSATA Port Multiplier Trayless JBOD Chassis 500W PSU
  • 2x eSATA Connectors with Port Multiplier Support
  • 120mm Cooling Fan for Ventilation
  • LED Indicators for Power and Activity on Each Hard Drive
  • Hot-swappable Both on Host and Device
  • Trayless Design
  • Support 9x SATA 6Gb/s Hard Drives
  • Individual Lock of each HDD Tray for Physical Security





Product Introduction
DAGE409U40DE-PM is an external 4U-9 bay Trayless hot-swappable SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 9 SATA drives for 1/0/5/JBOD RAID configuration. This 4U-9 Bay external SATA enclosure is designed with 2 high quality eSATA (Port Multiplier) connectors. One 120mm Ball bearing fan offer long lasting and enhanced thermal cooling solution. DAGE409U40DE-PM provides maximum storage and performance to high density storage system.

Model NumberDAGE409U40DE-PM
RoHS Compliance VersionYes
Form Factor4U
Host Interface2x eSATA-Port Multiplier
HDD Interface3.5" SATA I/II/III
Hot SwapBoth on Host and Device
Hotswap 3.5"9
LED DisplayPower and HDD Activity
MaterialChassis: 1.2 mm SECC Zinc-Coated Steel
Main ColorBlack
Power Supply500W Single PSU
Cooling Fan1x120mm
Ordering Information
(Part Number)
500W Single PSU:
Black HDD Handle:DAGE409U40DEBK-PM
Blue HDD Handle:DAGE409U40DEBL-PM
Red HDD Handle:DAGE409U40DERD-PM
Silver HDD Handle:DAGE409U40DESL-PM
Wood Look HDD Handle:DAGE409U40DEWB-PM

550W Redundant PSU:
Black HDD Handle:DAGE409U40DEBK-PM-R
Blue HDD Handle:DAGE409U40DEBL-PM-R
Red HDD Handle:DAGE409U40DERD-PM-R
Silver HDD Handle:DAGE409U40DESL-PM-R
Wood Look HDD Handle:DAGE409U40DEWB-PM-R
Dimensions (WxHxD)19.00" x 7.00" x 20.00"
482.6 mm x 177.8 mm x 508.0 mm
FAQ


There are no FAQ entries for this model.
Accessories

ImageAccessoryDescription
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
CAGE-ESA2ESABuild-to-Order - ESATA to ESATA External SATA Cable

Connection Diagram
