DAGE540DE1-SAU3

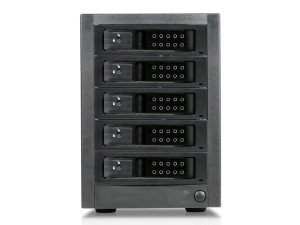

5-bay 3.5" SATA USB 3.0 eSATA-Port Multiplier Trayless JBOD Enclosure 250W PSU
  • Supports 5x 3.5" SATA 6Gb/s Hard Drives
  • LED Indicators for Power and Activity on Each HDD Tray
  • Individual Lock of each HDD Tray for Physical Security
  • 2x 80 mm Cooling Fans for Ventilation
  • USB 3.0 and eSATA-MultiplierPort Multiplier Interface for Easy Connection
  • Trayless Design
  • eSATA Chipset: JMicron JMB575
  • Supports SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transfer rate
  • Supports individual drive mode via *eSATA or USB connection
Product Introduction
DAGE540DE1-SAU3 external multi-bay JBOD tower is designed especially for storage applications. It is able to hold five 3.5" hard drives for storing mass data via a 6.0 Gb/s eSATA connector or USB 3.0 interface, offering a fast data transfer rate. Ball bearing 80mm cooling fan enhances the ventilation inside. The external JBOD storage case provides maximum storage and performance to high density storage system for your critical data storage.

Model NumberDAGE540DE1-SAU3
RoHS Compliance VersionYes
Host InterfaceeSATA/ USB 3.0
HDD Interface3.5" SATA I/II/ III
Hotswap 3.5"5
LED DisplayPower and HDD Activity
MaterialSteel
Main ColorBlack
Power Supply250
Raid LevelConfigured by Host Controller
Cooling Fan2x80mm
Ordering Information
(Part Number)
Black HDD Handle:DAGE540DE1BK-SAU3
Blue HDD Handle:DAGE540DE1BL-SAU3
Red HDD Handle:DAGE540DE1RD-SAU3
Silver HDD Handle:DAGE540DE1SL-SAU3
Wood Look Handle:DAGE540DE1WB-SAU3
Dimensions (WxHxD)8.00" x 11.00" x 16.00"
203.2 mm x 279.4 mm x 406.4 mm
Notes- *individual drive configuration is supported via eSATA controllers with Port Multiplier function. Controllers without Port Multiplier function will only recognize one single hard drive via eSATA connection.
Download
FAQ


There are no FAQ entries for this model.
Accessories

ImageAccessoryDescription
CAGE-ESA2ESABuild-to-Order - ESATA to ESATA External SATA Cable
