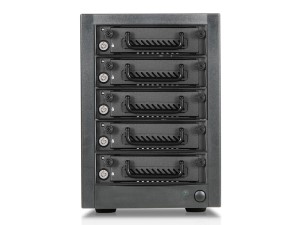

DAGE540TG5-PM
5-bay SATA 6.0 Gb/s eSATA-Port Multiplier Hotswap JBOD Enclosure 250W PSU
  • Supports 5x 2.5"/3.5" SATA 6Gb/s Hard Drives
  • LED Indicators for Power and Activity on Each Hard Drive
  • Individual Lock of each HDD Tray for Physical Security
  • 2x 80mm Cooling Fans for Ventilation
  • eSATA Connector with Port Multiplier Support
  • Hot-swappable Both on Host and Device





Product Introduction
DAGE540TG5-PM is an external 5-bay hot-swappable SATA disk array storage tower. It provides users a big storage capacity for up to 5 hard drives for RAID configurations. This external tower is designed with one high quality eSATA (Port Multiplier) connector. Two quiet 80mm cooling fans offer long lasting and enhanced thermal cooling solution. DAGE540TG5-PM provides maximum storage and performance to high density storage system.

Model NumberDAGE540TG5-PM
RoHS Compliance VersionYes
Host Interface1x eSATA-Port Multiplier
HDD Interface2.5" & 3.5" SATA I/II/III
Hotswap 3.5"5
LED DisplayPower and HDD Activity
MaterialSteel
Main ColorBlack
Power Supply250
Raid LevelConfigured by Host Controller
Cooling Fan2x80mm
Dimensions (WxHxD)8.00" x 11.00" x 16.00"
203.2 mm x 279.4 mm x 406.4 mm
FAQ


There are no FAQ entries for this model.
Accessories

ImageAccessoryDescription
CAGE-ESA2ESABuild-to-Order - ESATA to ESATA External SATA Cable

Connection Diagram
